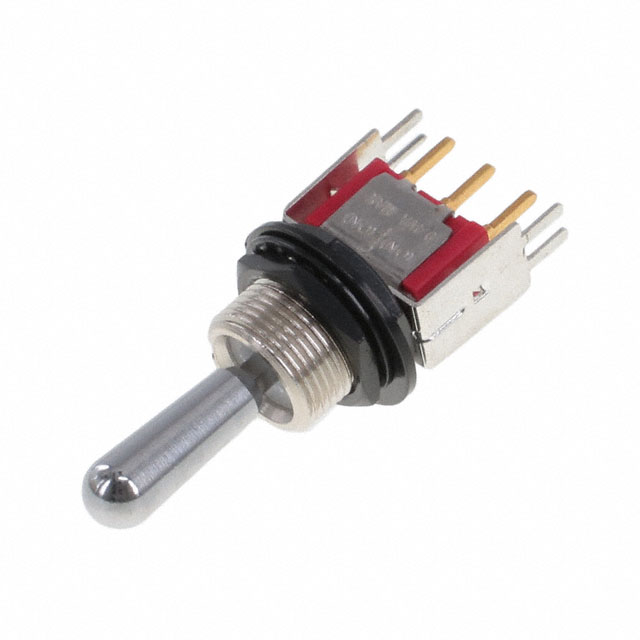

100SP4T8B13VS2REH

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100SP4T8B13VS2REH

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.76
		10	$ 5.19
		25	$ 4.93
		54	$ 4.72
		108	$ 4.57
		270	$ 4.33
		486	$ 4.00
		972	$ 3.81

Description

General part information

100SP4 Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP4T8B13VS2REH	100SP4 Series

Actuator Length	-	6.86 mm
Actuator Length [x]	18 mm	5.08 - 18 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Flat Anti-Rotation
Bushing Thread	15/32-32	1/4-40, Unthreaded, 15/32-32, M6 x 0.75
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole	Right Angle, Panel Mount, Through Hole, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	11.91 mm	0.25 - 11.91 in
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	PC Pin	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100SP4 Series

SWITCH TOGGLE SPDT 5A 120V

Part	Actuator Type	Illumination	Panel Cutout Dimensions [diameter]	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Material	Circuit	Actuator Length [x]	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Voltage Rating - DC	Features	Actuator Length [custom]	Mounting Type
E-Switch 100SP4T1B3M2QE	Standard Round	Non-Illuminated	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.19 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T6B11M2QEH	Flat Anti-Rotation	Non-Illuminated	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.3 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T2B3M6RE	Standard Round	Non-Illuminated	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT		0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals	6.86 mm	Panel Mount, Right Angle
E-Switch 100SP4T1B4VS31RE	Standard Round	Non-Illuminated		Unthreaded	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	10.41 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals		Through Hole
E-Switch 100SP4T4B4M7RE	Standard Round	Non-Illuminated		Unthreaded	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	16.26 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals		Right Angle, Through Hole, Vertical
E-Switch 100SP4T1B1M1QEH	Standard Round	Non-Illuminated	0.25 in	1/4-40	Solder Lug	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	10.41 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T1B9M1QEH	Standard Round	Non-Illuminated	0.25 in	1/4-40	Solder Lug	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	10.41 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T7B13M54QEH	Standard Round	Non-Illuminated	11.91 mm	15/32-32	Wire Wrap	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	13 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T6B11M1REH	Flat Anti-Rotation	Non-Illuminated	0.25 in	1/4-40	Solder Lug	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.3 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals
E-Switch 100SP4T6B11M51REH	Flat Anti-Rotation	Non-Illuminated	0.25 in	1/4-40	Wire Wrap	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.3 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals
