1-794223-0
ActiveTE Connectivity AMP Connectors

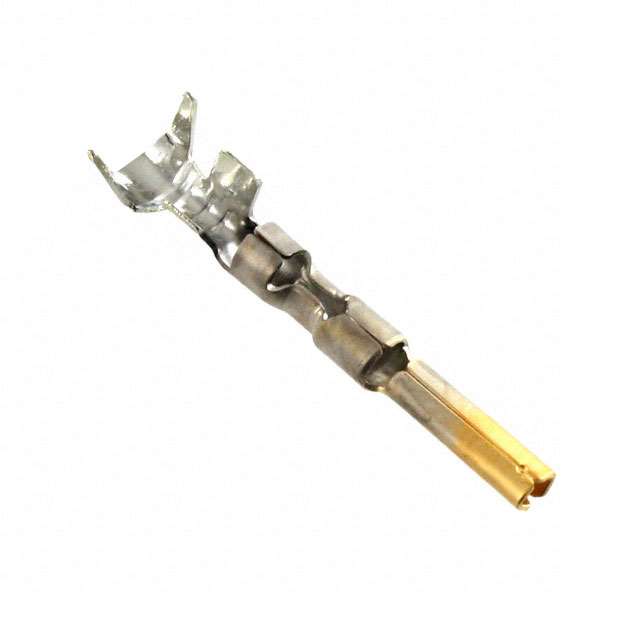

CONN SOCKET 16-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-794223-0
ActiveTE Connectivity AMP Connectors
CONN SOCKET 16-20AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794223-0 | 794223 Series |
|---|---|---|
| Contact Finish | Gold | Tin, Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | - | Power |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
794223 Series
CONN SOCKET 16-20AWG CRIMP TIN
| Part | Contact Finish | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794223-1 | Tin | Crimp | Socket | 16 AWG | 20 AWG | |||
TE Connectivity AMP Connectors 794223-3 | Gold | Crimp | Socket | 16 AWG | 20 AWG | Power | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors 1-794223-0 | Gold | Crimp | Socket | 16 AWG | 20 AWG | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.51 | |||
| 2500 | $ 0.48 | |||
| Tape & Reel (TR) | 5000 | $ 0.44 | ||
| 10000 | $ 0.43 | |||
Description
General part information
794223 Series
Socket Contact Gold 16-20 AWG Crimp
