ERCD-060-40.00-TEU-TED-1-D

Active

Samtec Inc.

CBL ASSEM M-M 120POS 40" HDR

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSEM M-M 120POS 40" HDR

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Rows	Shielding	Connector Type	Number of Positions	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Finish	Length	Length	Length	Length
Samtec Inc. ERCD-060-18.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge Reversed	120	0.016 in	0.4 mm	457.2 mm	1.5 ft	50 µin	1.27 µm	Blue Ribbon	Gold
Samtec Inc. ERCD-060-12.00-TEU-TED-1-B	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold	1 ft	304.8 mm
Samtec Inc. ERCD-060-06.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold		152.4 mm	6 "	0.5 '
Samtec Inc. ERCD-060-12.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold	1 ft	304.8 mm
Samtec Inc. ERCD-060-40.00-TEU-TED-1-B	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm	1.02 m	3.33 '	50 µin	1.27 µm	Blue Ribbon	Gold
Samtec Inc. ERCD-060-06.00-TEU-TED-1-B	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm			50 µin	1.27 µm	Blue Ribbon	Gold		152.4 mm	6 "	0.5 '
Samtec Inc. ERCD-060-40.00-TEU-TED-1-D	0.8 mm	0.031 in	IDC	2	Unshielded	Card Edge to Card Edge	120	0.016 in	0.4 mm	1.02 m	3.33 '	50 µin	1.27 µm	Blue Ribbon	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

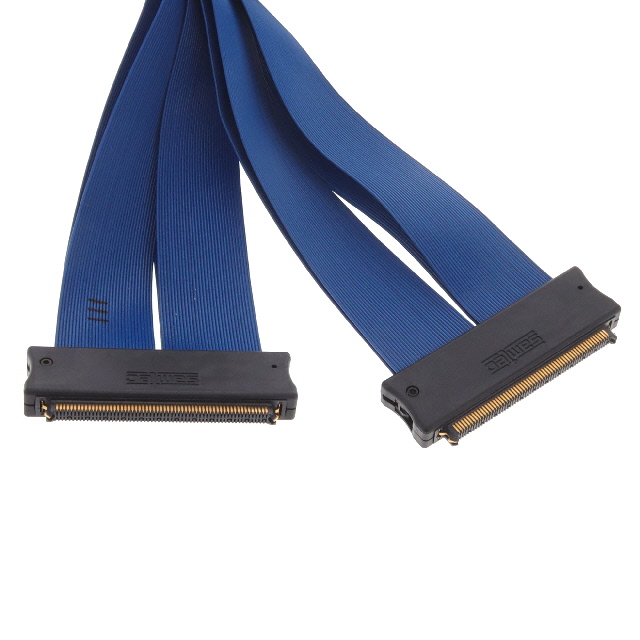

120 Position Cable Assembly Rectangular Card Edge to Card Edge 3.33' (1.02m)
