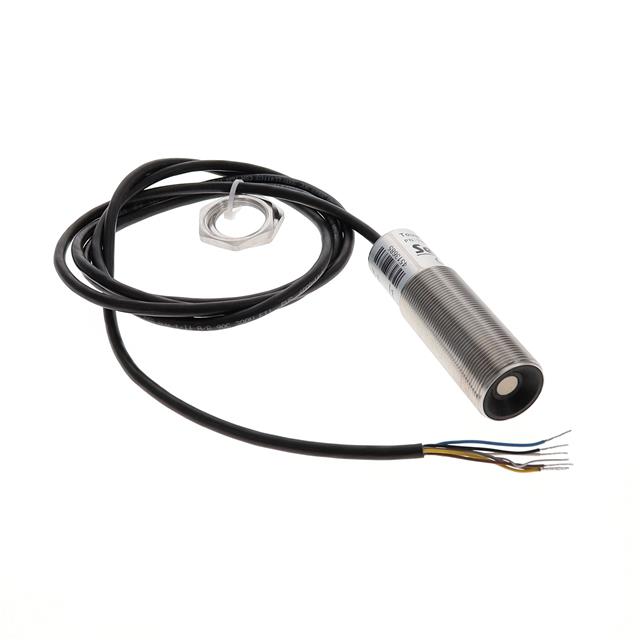

TSPC-30S2-232

Active

Senix Corporation

SENSOR PROX ULTRASONIC 910MM CYL

Search across all available documentation for this part.

Active

Senix Corporation

SENSOR PROX ULTRASONIC 910MM CYL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX ULTRASONIC 910MM CYL

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TSPC-30S2-232	TSPC-30 Series

Indicator [custom]	No Indicator	No Indicator
Ingress Protection	IP68 NEMA 4X, IP68 NEMA 6P	IP68 NEMA 4X, IP68 NEMA 6P, IP68
Material - Body	Stainless Steel	Stainless Steel
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded - M30	Cylinder, Threaded - M30
Sensing Distance	35.827 in	14 - 145.669 in
Sensing Distance	910 mm	4.3 - 3700 mm
Sensor Type	Ultrasonic	Ultrasonic
Shielding	Unshielded	Unshielded
Termination Style	Cable Leads	Cable Leads
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

SENSOR PROX ULTRASONIC 910MM CYL

Part	Sensing Distance	Sensing Distance	Sensor Type	Material - Body	Ingress Protection	Shielding	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Indicator [custom]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case
Senix Corporation TSPC-30S2-485	35.827 in	910 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1-232	14 ft	4.3 m	Ultrasonic	Stainless Steel	IP68	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S2-232	35.827 in	910 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1K-232	145.669 "	3700 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1-485	14 ft	4.3 m	Ultrasonic	Stainless Steel	IP68	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
Senix Corporation TSPC-30S1K-485	145.669 "	3700 mm	Ultrasonic	Stainless Steel	IP68 NEMA 4X, IP68 NEMA 6P	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	Analog Current and Voltage, NPN/PNP	30 VDC	10 VDC	Cylinder, Threaded - M30
