822-AG11D

Obsolete

TE Connectivity AMP Connectors

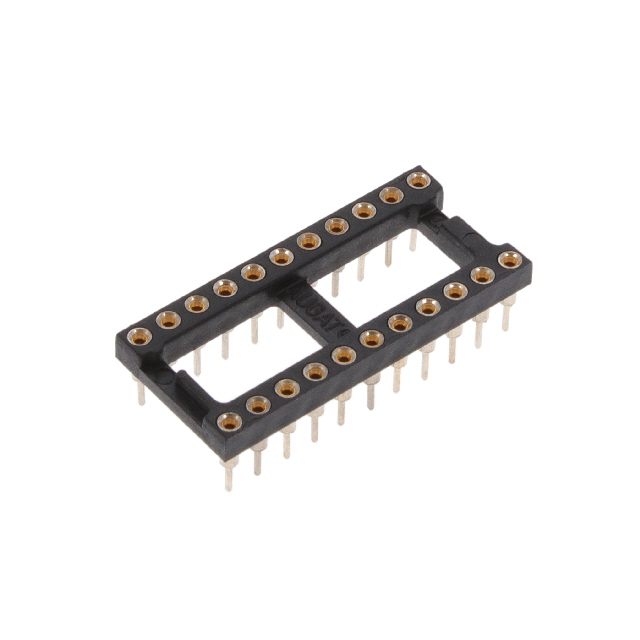

CONN IC DIP SOCKET 22POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 22POS GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 (2 x 11) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	822-AG11D	822 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Gold
Contact Finish Thickness - Mating	-	Flash
Contact Finish Thickness - Post	2.03 µm	2.03 µm
Contact Finish Thickness - Post	80 µin	80 µin
Contact Finish Thickness - Post	-	Flash
Contact Material - Mating	Copper Alloy	Copper Alloy, Beryllium Copper
Contact Material - Post	-	Copper
Contact Material - Post [custom]	Copper Alloy	Copper Alloy
Contact Resistance	10 mOhm	10 mOhm
Features	Open Frame	Open Frame
Housing Material	Polyester	Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	22	22
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	0.3 "	0.3 - 0.4 "
Type	7.62 mm	7.62 - 10.16 mm
Type	DIP	DIP

CONN IC DIP SOCKET 22POS GOLD

Part	Termination Post Length	Termination Post Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Features	Contact Resistance	Number of Positions or Pins (Grid)	Contact Finish - Mating	Termination	Type	Type	Type	Mounting Type	Contact Material - Post [custom]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Material - Mating	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 822-AG11D	3.18 mm	0.125 in	2.03 µm	80 µin	Tin-Lead	Open Frame	10 mOhm	22	Gold	Solder	0.3 "	7.62 mm	DIP	Through Hole	Copper Alloy	UL94 V-0	105 ░C	-55 °C	Polyester	Copper Alloy	2.54 mm	0.1 in	0.1 in	2.54 mm
TE Connectivity AMP Connectors 822-AG11D-ESL-LF	3.18 mm	0.125 in			Gold	Open Frame	10 mOhm	22	Gold	Solder	0.4 in	10.16 mm	DIP	Through Hole		UL94 V-0	105 ░C	-55 °C	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	2.54 mm	0.1 in	0.1 in	2.54 mm	Copper	Flash	Flash
