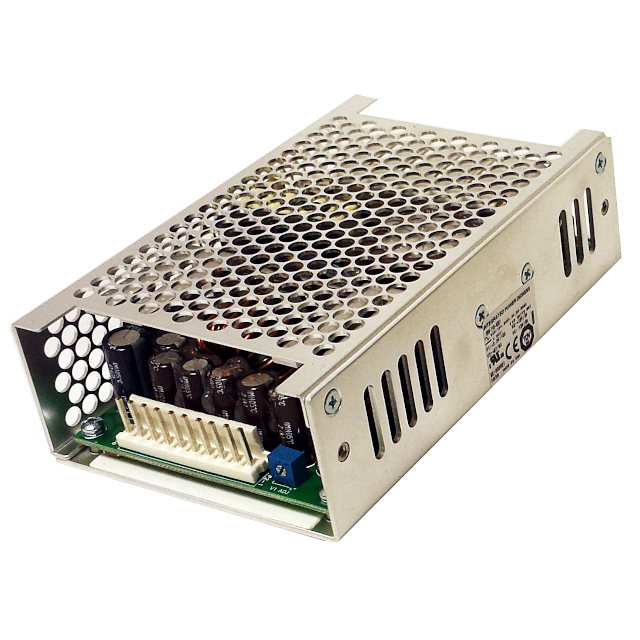

1011247CHCO

Active

Integrated Power Designs

GRN-110-2001 CHCO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1011247CHCO

Active

Integrated Power Designs

GRN-110-2001 CHCO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 123.42
		25	$ 119.99
		100	$ 116.75

Description

General part information

GRN-110 Series

Enclosed AC DC Converters 2 Output 5V 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1011247CHCO	GRN-110 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA	TUV, cURus, CE, UKCA
Current - Output 1	12 A	2.3 - 22 A
Current - Output 2	3 A	2 - 5 A
Current - Output 3	-	2 - 3 A
Current - Output 4	-	2 A
Efficiency	85 %	85 - 87 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	132 W	73 - 158 W
Size / Dimension [x]	133.4 mm	133.4 mm
Size / Dimension [x]	5.25 "	5.25 "
Size / Dimension [y]	3.25 "	3.25 "
Size / Dimension [y]	82.6 mm	82.6 mm
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.5 "
Standard Number	60601-1, 62368-1	60601-1, 62368-1
Type	Enclosed	Enclosed, Chassis
Voltage - Output 1	5 V	3.3 - 48 V
Voltage - Output 2	24 V	-15 - 24 V
Voltage - Output 3	-	-15 - 15 V
Voltage - Output 4	-	-15 V

GRN-110 Series

GRN-110-3001 OVP CHCO

Part	Standard Number	Current - Output 1	Current - Output 3	Power (Watts)	Number of Outputs	Mounting Type	Current - Output 2	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Applications	Voltage - Output 1	Features	Approval Agency	Voltage - Output 2	Operating Temperature [Max]	Type	Voltage - Output 3
Integrated Power Designs 1011375CHCO	60601-1, 62368-1	12 A	3 A	110 W	3	Chassis Mount	3 A	38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	85 %	ITE (Commercial), Medical	5 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA	12 V	70 °C	Enclosed	-12 V
Integrated Power Designs 1011248CH	60601-1, 62368-1	12 A		110 W	2	Chassis Mount	5 A	38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	85 %	ITE (Commercial), Medical	5 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA	12 V	70 °C	Chassis
Integrated Power Designs 1011380CH	60601-1, 62368-1	4 A			2	Chassis Mount	4 A	38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	85 %	ITE (Commercial), Medical	15 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA	-15 V	70 °C	Chassis
Integrated Power Designs 1011248CHCO	60601-1, 62368-1	12 A			2	Chassis Mount	5 A	38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	85 %	ITE (Commercial), Medical	5 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA	12 V	70 °C	Enclosed
Integrated Power Designs 1011415CH	60601-1, 62368-1	2.3 A		110 W	1	Chassis Mount		38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	87 %	ITE (Commercial), Medical	48 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA		70 °C	Chassis
Integrated Power Designs 1011346CHCO	60601-1, 62368-1	9.2 A		110 W	1	Chassis Mount		38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	87 %	ITE (Commercial), Medical	12 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA		70 °C	Enclosed
Integrated Power Designs 1011249CHCO	60601-1, 62368-1	5 A		110 W	2	Chassis Mount	5 A	38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	85 %	ITE (Commercial), Medical	12 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA	-12 V	70 °C	Enclosed
Integrated Power Designs 1011249CH	60601-1, 62368-1	5 A		110 W	2	Chassis Mount	5 A	38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	85 %	ITE (Commercial), Medical	12 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA	-12 V	70 °C	Chassis
Integrated Power Designs 1011377CH	60601-1, 62368-1	12 A		132 W	2	Chassis Mount	3 A	38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	85 %	ITE (Commercial), Medical	5 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA	24 V	70 °C	Chassis
Integrated Power Designs 1011411CHCO	60601-1, 62368-1	9.2 A		110 W	1	Chassis Mount		38.1 mm	133.4 mm	3.25 "	5.25 "	1.5 "	82.6 mm	87 %	ITE (Commercial), Medical	12 V	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV, UKCA		70 °C	Enclosed
