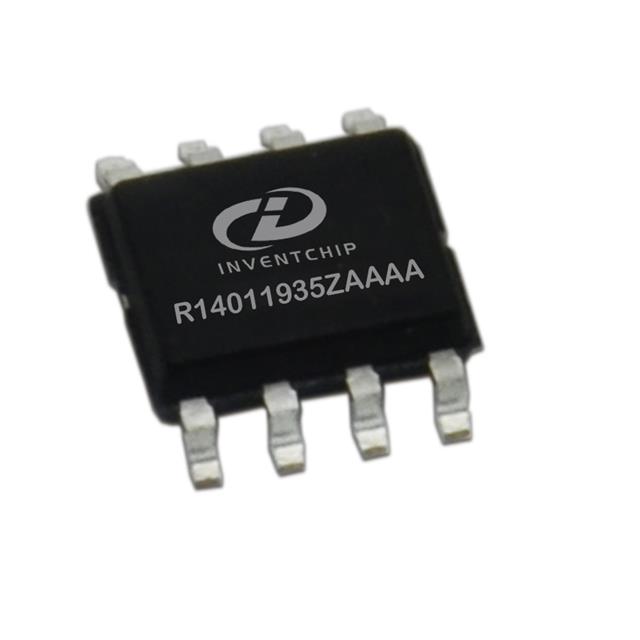

IVCR1401DPR

Active

Inventchip

SIC MOSFET AND IGBT DRIVER, 4A,

Search across all available documentation for this part.

Active

Inventchip

SIC MOSFET AND IGBT DRIVER, 4A,

Technical Specifications

Parameters and characteristics for this part

Specification	IVCR1401DPR

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	4 A
Current - Peak Output (Source, Sink) [custom]	4 A
Driven Configuration	Low-Side
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.154 in
Package / Case	8-SOIC
Package / Case	3.9 mm
Rise / Fall Time (Typ) [custom]	13 ns
Rise / Fall Time (Typ) [custom]	13 ns
Supplier Device Package	8-SOIC-EP
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	19 V

SIC MOSFET AND IGBT DRIVER, 4A,

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Driven Configuration	Channel Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Input Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Package / Case
Inventchip IVCR1401DPR	13 ns	13 ns	8-SOIC-EP	Low-Side	Single	Surface Mount	-40 °C	125 °C	4 A	4 A	1	Non-Inverting	19 V	25 V	0.154 in	8-SOIC	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Low-Side Gate Driver IC Non-Inverting 8-SOIC-EP

Technical documentation and resources

No documents available
