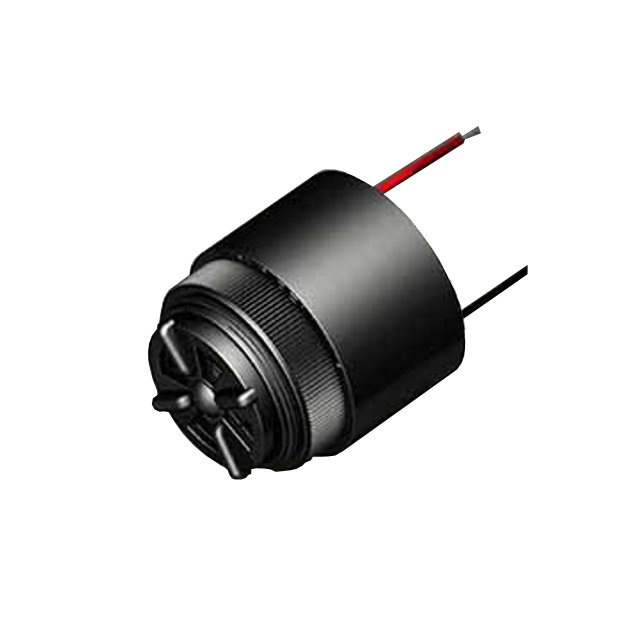

CH-V09-525-W(S)
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CH-V09-525-W(S)
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CH-V09-525-W(S) | CH-V09-525 Series |
|---|---|---|
| Approval Agency | UR, UL | UR, UL |
| Current - Supply [Max] | 45 mA | 25 - 45 mA |
| Current - Supply [Min] | 10 mA | 5 - 10 mA |
| Driver Circuitry | Internally Driven, Indicator | Internally Driven, Indicator |
| Frequency | 2.1 kHz | 2.1 - 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 1.48 " | 1.48 " |
| Height - Seated (Max) [Max] [z] | 37.59 mm | 37.59 mm |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Input Type | DC | DC |
| Operating Mode | Chime, Single Shot | Chime, Single Shot |
| Port Location | Top | Top |
| Size / Dimension [diameter] | 1.41 in | 1.409 - 1.41 in |
| Size / Dimension [diameter] | 35.81 mm | 35.8 - 35.81 mm |
| Sound Pressure Level (SPL) | 93 dB | 93 dB |
| Technology | Piezo | Piezo |
| Termination | Wire Leads | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Quick Connect Tab - 0.250" (6.35mm), Wire Leads |
| Voltage Range [Max] | 25 VDC | 25 VDC |
| Voltage Range [Min] | 5 VDC | 5 VDC |
CH-V09-525 Series
BUZZER PIEZO 35.81MM PNL MNT
| Part | Current - Supply [Max] | Current - Supply [Min] | Driver Circuitry | Ingress Protection | Input Type | Approval Agency | Voltage Range [Min] | Voltage Range [Max] | Termination | Sound Pressure Level (SPL) | Port Location | Operating Mode | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Technology | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc CH-V09-525-S(F) | 25 mA | 5 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 93 dB | Top | Chime | 1.41 in | 35.81 mm | 1.48 " | 37.59 mm | Piezo | 2.9 kHz |
Floyd Bell Inc CH-V09-525-S(M) | 25 mA | 5 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 93 dB | Top | Chime | 1.409 in | 35.8 mm | 1.48 " | 37.59 mm | Piezo | 2.9 kHz |
Floyd Bell Inc CH-V09-525-Q(S) | 45 mA | 10 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Quick Connect Tab - 0.250" (6.35mm) | 93 dB | Top | Chime, Single Shot | 1.409 in | 35.8 mm | 1.48 " | 37.59 mm | Piezo | 2.1 kHz |
Floyd Bell Inc CH-V09-525-Q(F) | 25 mA | 5 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Quick Connect Tab - 0.250" (6.35mm) | 93 dB | Top | Chime | 1.409 in | 35.8 mm | 1.48 " | 37.59 mm | Piezo | 2.9 kHz |
Floyd Bell Inc CH-V09-525-QHS | 45 mA | 10 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Quick Connect Tab - 0.250" (6.35mm) | 93 dB | Top | Chime, Single Shot | 1.409 in | 35.8 mm | 1.48 " | 37.59 mm | Piezo | 2.1 kHz |
Floyd Bell Inc CH-V09-525-W(F) | 25 mA | 5 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Wire Leads | 93 dB | Top | Chime | 1.41 in | 35.81 mm | 1.48 " | 37.59 mm | Piezo | 2.9 kHz |
Floyd Bell Inc CH-V09-525-W(S) | 45 mA | 10 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Wire Leads | 93 dB | Top | Chime, Single Shot | 1.41 in | 35.81 mm | 1.48 " | 37.59 mm | Piezo | 2.1 kHz |
Floyd Bell Inc CH-V09-525-Q(M) | 25 mA | 5 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Quick Connect Tab - 0.250" (6.35mm) | 93 dB | Top | Chime | 1.41 in | 35.81 mm | 1.48 " | 37.59 mm | Piezo | 2.9 kHz |
Floyd Bell Inc CH-V09-525-S(S) | 45 mA | 10 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 93 dB | Top | Chime, Single Shot | 1.409 in | 35.8 mm | 1.48 " | 37.59 mm | Piezo | 2.1 kHz |
Floyd Bell Inc CH-V09-525-W(M) | 25 mA | 5 mA | Indicator, Internally Driven | IP68 - Dust Tight, Waterproof | DC | UL, UR | 5 VDC | 25 VDC | Wire Leads | 93 dB | Top | Chime | 1.41 in | 35.81 mm | 1.48 " | 37.59 mm | Piezo | 2.9 kHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.28 | |
Description
General part information
CH-V09-525 Series
Buzzers Indicator, Internally Driven Piezo 10 ~ 45mA 2.1kHz 93dB @ 25V, 61cm Panel Mount Wire Leads
