PF2404 NA005

Active

ALPHA WIRE

SLEEVING 0.204" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.204" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF2404 NA005

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside [diameter]	5.18 mm
Diameter - Inside [diameter]	0.204 in
Diameter - Outside [diameter]	0.256 in
Diameter - Outside [diameter]	6.5 mm
Environment Protection	Corrosion Resistant
Length	100 ft
Length	30.48 m
Material	Fiberglass
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	648 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.016 in
Wall Thickness	0.4 mm

SLEEVING 0.204" ID FBRGLASS 100'

Part	Material Flammability Rating	Type	Wall Thickness	Wall Thickness	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length	Length	Type Attributes	Environment Protection	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Abrasion Protection	Color	Material
ALPHA WIRE PF2404 NA005	UL VW-1	Sleeving	0.016 in	0.4 mm	0.256 in	6.5 mm	100 ft	30.48 m	Braided	Corrosion Resistant	-60 °C	648 °C	5.18 mm	0.204 in	Abrasion Resistant	Natural	Fiberglass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

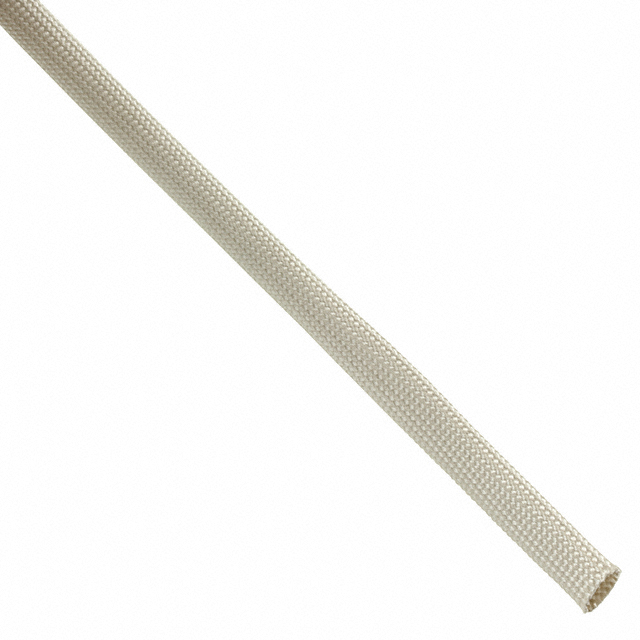

Natural Fiberglass Braided Sleeving 0.204" (5.18mm) 100' (30.48m)
