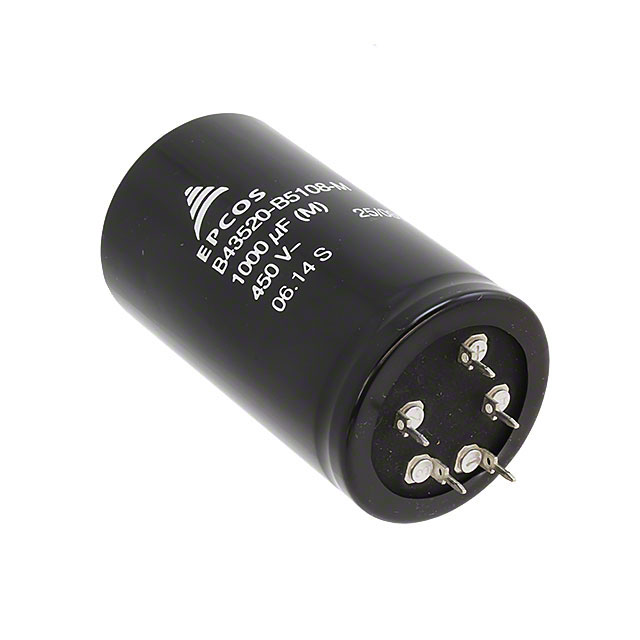

Specification	B43520B5108M000

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	110 mOhm
Height - Seated (Max)	2.913 in
Impedance	150 mOhms
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Lead
Package Name	Radial, Can
Polarization	Polar
Ripple Current	5.06 A
Size / Dimension Diameter	1.575 in
Tolerance	20 %
Voltage - Rated	450 V
