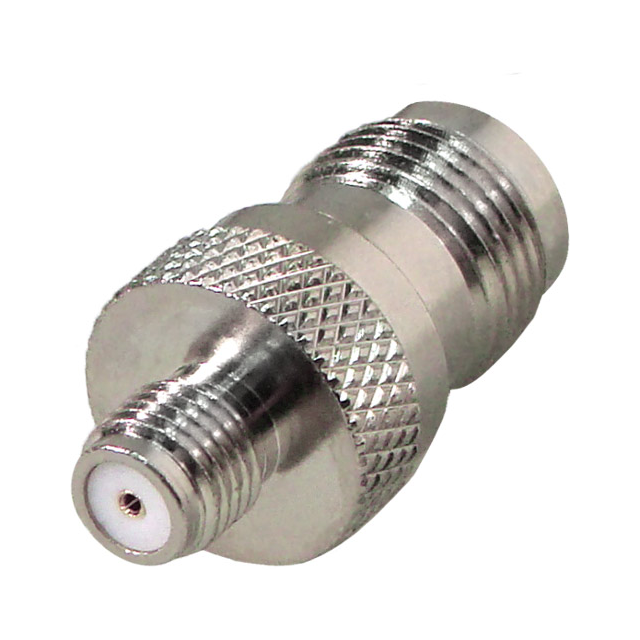

RFT-1241-4

Active

RF Industries

TNC FEMALE-SMA FEMALE (MOTOROLA)

Search across all available documentation for this part.

Active

RF Industries

TNC FEMALE-SMA FEMALE (MOTOROLA)

Technical Specifications

Parameters and characteristics for this part

Specification	RFT-1241-4

Adapter Series	SMA to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Finish	Convert To (Adapter End)	Dielectric Material	Convert From (Adapter End)	Conversion Type	Adapter Type	Style	Center Contact Plating	Center Gender	Adapter Series	Mounting Type	Frequency - Max [Max]	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material
RF Industries RFT-1241-5	Nickel	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	TNC Jack Female Socket	Between Series	Jack to Jack	Straight	Gold	Female to Female	SMA to TNC	Free Hanging (In-Line)
RF Industries RFT-1241-4	Nickel	Female Socket SMA Plug	Polytetrafluoroethylene (PTFE)	TNC Jack Female Socket	Between Series	Plug to Jack	Straight	Gold	Female to Female	SMA to TNC	Free Hanging (In-Line)	7 GHz	Phosphor Bronze	-65 ░C	165 °C	50 Ohms	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To SMA Plug, Female Socket 50 Ohms
