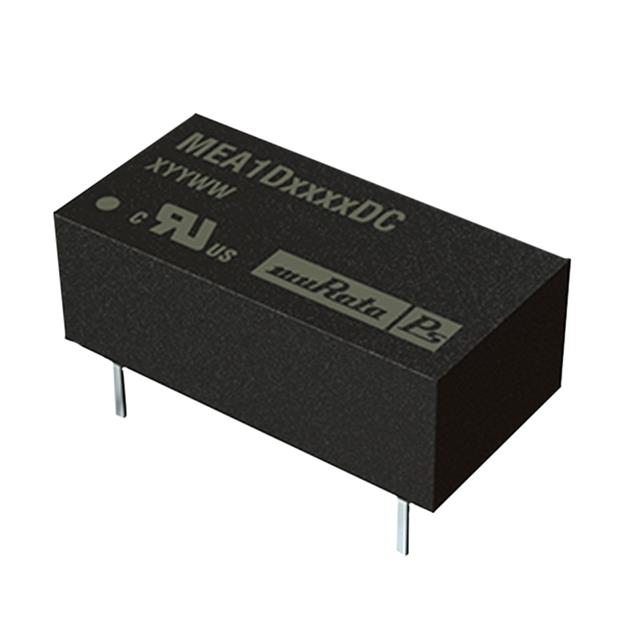

MEA1D1512DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MEA1D1512DC	MEA1D15 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	33 - 100 mA
Current - Output (Max)	-	100 mA
Current - Output (Max) [Max]	42 mA	42 mA
Current - Output (Max) [Max]	42 mA	42 mA
Efficiency	87.5 %	84 - 87.5 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads
Size / Dimension [x]	0.78 "	0.77 - 0.78 in
Size / Dimension [x]	19.7 mm	19.7 mm
Size / Dimension [y]	0.39 "	0.24 - 0.39 "
Size / Dimension [y]	10 mm	6.2 - 10 mm
Size / Dimension [z]	0.28 "	0.28 - 0.4 "
Size / Dimension [z]	7 mm	7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	16.5 V	16.5 V
Voltage - Input (Min) [Min]	13.5 V	13.5 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	12 V	5 - 15 V
Voltage - Output 2	-12 V	-15 - -5 V

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 1 W, 2 OUTPUT, 9 V, 56 MA

Part	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Efficiency	Applications	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Output 2	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. MEA1D1509SC	2	Isolated Module	85 °C	-40 °C	16.5 V	87 %	ITE (Commercial)	7-SIP Module, 5 Leads	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	9 V	-9 V	13.5 V	Through Hole	1000 V
Murata Power Solutions Inc. MEA1D1512SC	2	Isolated Module	85 °C	-40 °C	16.5 V	87.5 %	ITE (Commercial)	7-SIP Module, 5 Leads	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	12 V	-12 V	13.5 V	Through Hole	1000 V	42 mA	42 mA
Murata Power Solutions Inc. MEA1D1515SC	2	Isolated Module	85 °C	-40 °C	16.5 V		ITE (Commercial)	7-SIP Module, 5 Leads	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	15 V	-15 V	13.5 V	Through Hole	1000 V			33 mA
Murata Power Solutions Inc. MEA1D1505SC	2	Isolated Module	85 °C	-40 °C	16.5 V	84 %	ITE (Commercial)	7-SIP Module, 5 Leads	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	5 V	-5 V	13.5 V	Through Hole	1000 V			100 mA	100 mA
Murata Power Solutions Inc. MEA1D1512DC	2	Isolated Module	85 °C	-40 °C	16.5 V	87.5 %	ITE (Commercial)	14-DIP Module, 6 Leads	19.7 mm	0.28 "	10 mm	0.78 "	0.39 "	7 mm	12 V	-12 V	13.5 V	Through Hole	1000 V	42 mA	42 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 13.5V - 16.5V Input
