HEEE-072-F

Active

TE Connectivity AMP Connectors

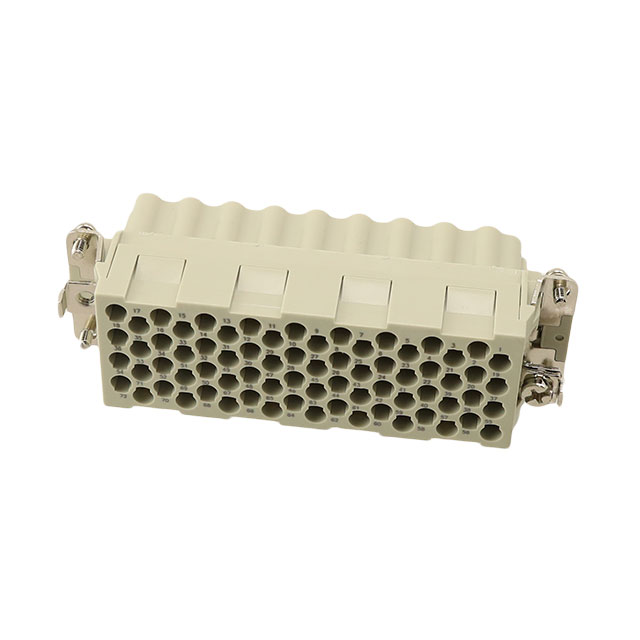

INSERT FML 72POS+1GND HEEE-072-F

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

INSERT FML 72POS+1GND HEEE-072-F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEEE-072-F	HEEE-072 Series

Color	-	Gray
Connector Type	Insert without Contacts	Insert without Contacts
Contact Type	CEF, DEF	CEM, DEM, CEF, DEF
Current Rating (Amps)	16 A	16 A
Gender	Female	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	EN45545	EN45545
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	H24B	H24B
Termination Style	Crimp	Crimp
Voltage Rating	400 V	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

INS ML 72P+1GD HEEE-072-M 73-144

Part	Gender	Termination Style	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Size	Contact Type	Housing Material	Voltage Rating	Current Rating (Amps)
TE Connectivity AMP Connectors HEEE-072-M 73-144	Male	Crimp	Gray	125 °C	-40 °C	EN45545	Insert without Contacts	H24B	CEM, DEM	Polycarbonate (PC)	400 V	16 A
TE Connectivity AMP Connectors HEEE-072-F	Female	Crimp		125 °C	-40 °C	EN45545	Insert without Contacts	H24B	CEF, DEF	Polycarbonate (PC)	400 V	16 A

General part information

Female Insert without Contacts 72+Ground Position Crimp
