XP6-1-I-6-1

Active

Exeltech

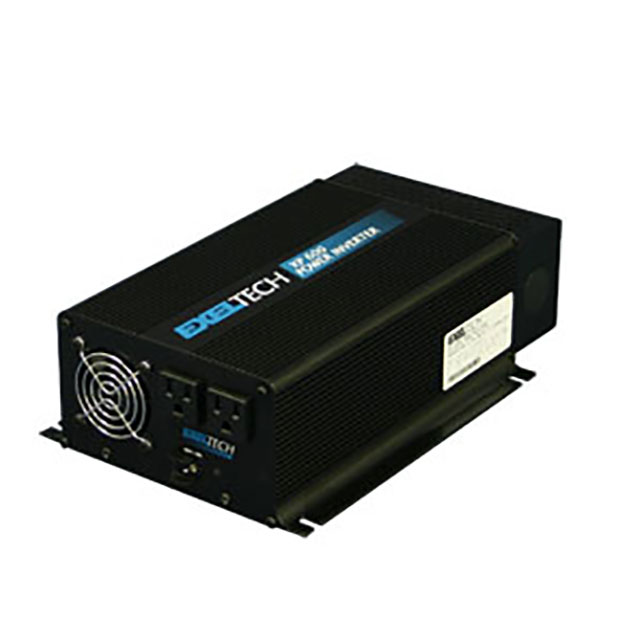

DC TO AC POWER INVERTER, 600WATT

Search across all available documentation for this part.

Active

Exeltech

DC TO AC POWER INVERTER, 600WATT

Technical Specifications

Parameters and characteristics commom to parts in this series

DC TO AC POWER INVERTER, 600WATT

Part	Size [y]	Size [z]	Size [x]	Size [x]	Size [z]	Size [y]	Region Utilized	AC Outlets	Voltage - Input	Power - Output Continuous	Connector - Voltage Input	Voltage - Output	Power - Output Surge	Connector - AC Output
Exeltech XP6-1-1-6-1	195.3 mm	3.57 in	307.3 mm	12.1 in	90.7 mm	7.69 in	North America	2	12 VDC	600 W	Wire Leads	120 VAC	1100 W	NEMA 5-15R (2)
Exeltech XP6-1-4-6-1	195.3 mm	3.57 in	307.3 mm	12.1 in	90.7 mm	7.69 in	North America	2	48 VDC	600 W	Wire Leads	120 VAC	1100 W	NEMA 5-15R (2)
Exeltech XP6-1-I-6-1	195.3 mm	3.57 in	307.3 mm	12.1 in	90.7 mm	7.69 in	North America	2	108 VDC	600 W	Wire Leads	120 VAC	1100 W	NEMA 5-15R (2)
Exeltech XP6-1-2-6-1	195.3 mm	3.57 in	307.3 mm	12.1 in	90.7 mm	7.69 in	North America	2	24 V	600 W	Wire Leads	120 VAC	1100 W	NEMA 5-15R (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

108VDC Voltage Input 600 W Power Output Continuous Inverter 2 AC Outlets NEMA 5-15R (2) North America

Technical documentation and resources

No documents available
