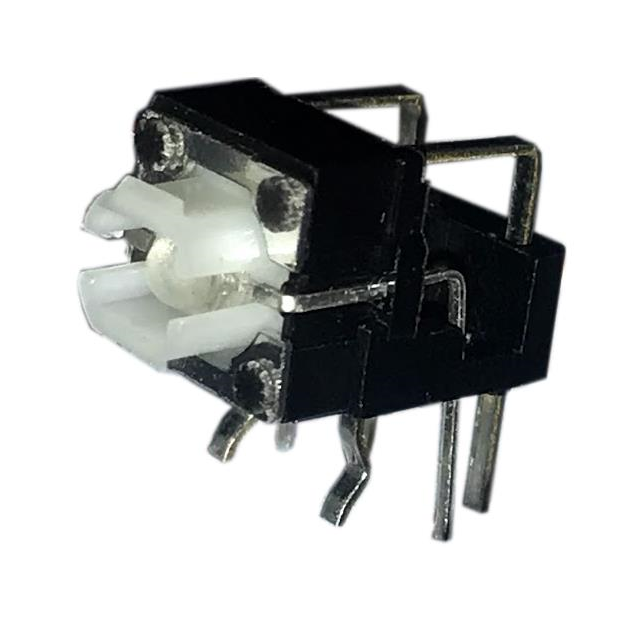

228FDSALYB

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	228FDSALYB	228FDSA Series

Actuator Length, Right Angle	5.95 mm	5.95 mm
Actuator Orientation	Side Actuated	Side Actuated
Actuator Type	Plunger for Cap	Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Green, Yellow, LED	LED, Amber/Green, Green, Yellow
Illumination Voltage (Nominal)	-	2 - 3.2 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	7.4 mm	7.4 mm
Outline [y]	5.85 mm	5.85 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Contact Rating @ Voltage	Illumination	Mechanical Life	Switch Travel	Actuator Type	Circuit	Actuator Length, Right Angle	Mounting Type	Actuator Orientation	Illumination Voltage (Nominal)	Illumination Type, Color	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Outline [y]	Outline [x]	Termination Style
CTS Electrocomponents 228FDSAGAB	0.05 A, 12 VDC	Illuminated	100000 Cycles	0.25 mm	Plunger for Cap	SPST-NO	5.95 mm	Through Hole, Right Angle	Side Actuated	2 VDC, 3 VDC	Amber/Green, LED	Off-Mom	-20 C	70 °C	5.85 mm	7.4 mm	PC Pin
CTS Electrocomponents 228FDSAGB	0.05 A, 12 VDC	Illuminated	100000 Cycles	0.25 mm	Plunger for Cap	SPST-NO	5.95 mm	Through Hole, Right Angle	Side Actuated	3 VDC	Green, LED	Off-Mom	-20 C	70 °C	5.85 mm	7.4 mm	PC Pin
CTS Electrocomponents 228FDSALYB	0.05 A, 12 VDC	Illuminated	100000 Cycles	0.25 mm	Plunger for Cap	SPST-NO	5.95 mm	Through Hole, Right Angle	Side Actuated		Green, LED, Yellow	Off-Mom	-20 C	70 °C	5.85 mm	7.4 mm	PC Pin
CTS Electrocomponents 228FDSABAB	0.05 A, 12 VDC	Illuminated	100000 Cycles	0.25 mm	Plunger for Cap	SPST-NO	5.95 mm	Through Hole, Right Angle	Side Actuated	2 VDC, 3.2 VDC		Off-Mom	-20 C	70 °C	5.85 mm	7.4 mm	PC Pin
