W4282-10PG-300

Active

Conxall/Switchcraft

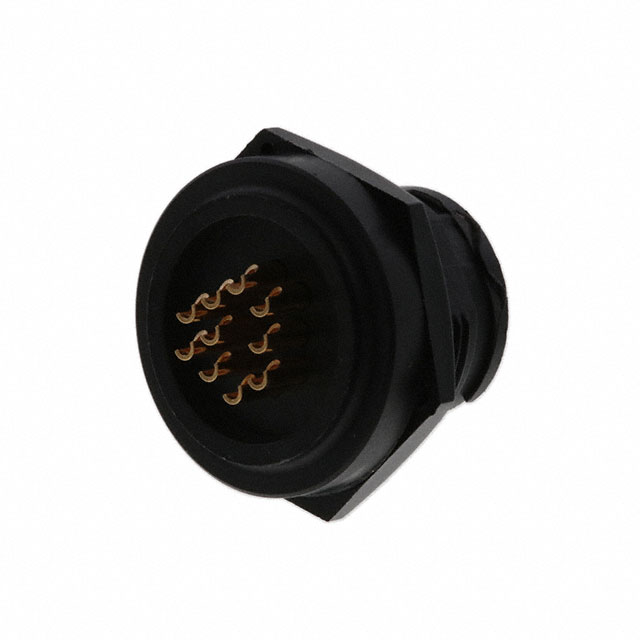

CONN RCPT MALE 10POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 10POS SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available

Specification	W4282-10PG-300	W4282-10 Series

Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	10	10
Orientation	E	E
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

Part	Primary Material	Shielding	Number of Positions	Mounting Feature	Orientation	Fastening Type	Voltage Rating	Color	Connector Type	Contact Material	Insert Material	Contact Finish - Mating
Conxall/Switchcraft W4282-10SG-3ES	Plastic	Unshielded	10	Bulkhead - Front Side Nut	E	Bayonet Lock	600 V	Black	Receptacle, Female Sockets	Brass	Thermoplastic	Gold
Conxall/Switchcraft W4282-10PG-300	Plastic	Unshielded	10	Bulkhead - Front Side Nut	E	Bayonet Lock	600 V	Black	Male Pins, Receptacle	Brass	Thermoplastic	Gold
