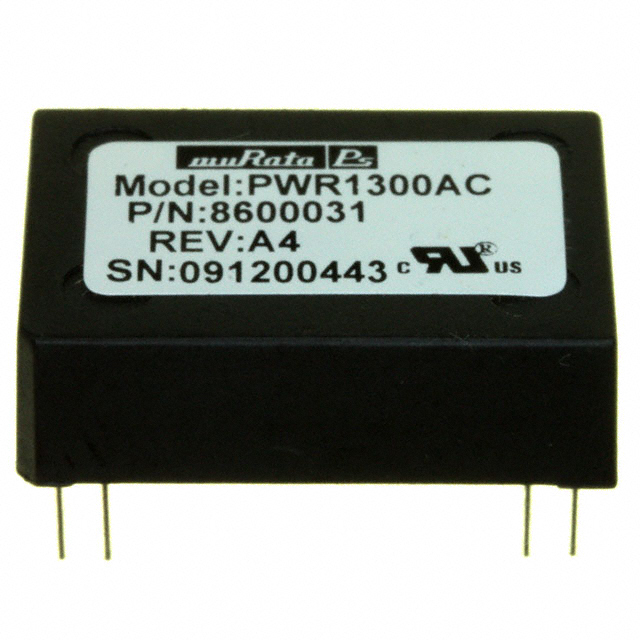

PWR1300AC - PWR1300AC

PWR1300AC

Active
Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, UNREGULATED, ITE, 1:1, 1.5 W, 1 OUTPUT, 5 V, 300 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENProduct Change Notice EN+1
PWR1300AC - PWR1300AC

PWR1300AC

Active
Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, UNREGULATED, ITE, 1:1, 1.5 W, 1 OUTPUT, 5 V, 300 MA

Deep-Dive with AI

DocumentsTechnical Data Sheet ENProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationPWR1300ACPWR13 Series
Applications-ITE (Commercial)
Current - Output (Max)-125 - 300 mA
Current - Output (Max)-50 mA
Current - Output (Max)-50 - 150 mA
Current - Output (Max)-150 mA
Efficiency-75 %
Mounting Type-Through Hole
null-
Number of Outputs-1 - 2
Operating Temperature-85 - 100 °C
Operating Temperature--55 - -40 °C
Package / Case-9 PC Pad
Package / Case-24-DIP Module
Power (Watts)-2 W
Size / Dimension-10.2 - 32.3 mm
Size / Dimension-1.27 in
Size / Dimension-0.81 in
Size / Dimension-0.4 "
Type-Isolated Module
Voltage - Input (Max)-5.5 - 13.2 V
Voltage - Input (Min)-4.5 - 10.8 V
Voltage - Isolation-4000 V
Voltage - Output 1-5 - 15 V
Voltage - Output 2--15 - -5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 36.72
25$ 35.61
50$ 31.04
100$ 29.71
250$ 29.04
NewarkEach 50$ 34.54
100$ 33.16

PWR13 Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, UNREGULATED, ITE, 1:1, 1.5 W, 1 OUTPUT, 5 V, 300 MA

PartSize / DimensionSize / Dimension [x]Size / Dimension [y]Size / Dimension [z]Voltage - Input (Min) [Min]Voltage - Output 1Mounting TypeVoltage - Input (Max) [Max]Current - Output (Max) [Max]EfficiencyApplicationsVoltage - IsolationNumber of OutputsTypePower (Watts)Operating Temperature [Max]Operating Temperature [Min]Package / CasePackage / CaseCurrent - Output (Max)Current - Output (Max)Voltage - Output 2Current - Output (Max)
Murata Power Solutions Inc.
PWR1300AC
10.2 mm, 20.5 mm, 32.3 mm
1.27 in
0.81 in
0.4 "
4.5 V
5 V
Through Hole
5.5 V
300 mA
75 %
ITE (Commercial)
4000 V
1
Isolated Module
2 W
85 °C
-40 °C
9 PC Pad
24-DIP Module
Murata Power Solutions Inc.
PWR1303AC
Murata Power Solutions Inc.
PWR1306AC
10.2 mm, 20.5 mm, 32.3 mm
1.27 in
0.81 in
0.4 "
10.8 V
5 V
Through Hole
13.2 V
300 mA
75 %
ITE (Commercial)
4000 V
1
Isolated Module
2 W
85 °C
-40 °C
9 PC Pad
24-DIP Module
Murata Power Solutions Inc.
PWR1311AC
10.2 mm, 20.5 mm, 32.3 mm
1.27 in
0.81 in
0.4 "
10.8 V
15 V
Through Hole
13.2 V
75 %
ITE (Commercial)
4000 V
2
Isolated Module
2 W
100 °C
-55 °C
9 PC Pad
24-DIP Module
50 mA
50 mA
-15 V
Murata Power Solutions Inc.
PWR1300AC
Murata Power Solutions Inc.
PWR1303AC
10.2 mm, 20.5 mm, 32.3 mm
1.27 in
0.81 in
0.4 "
4.5 V
5 V
Through Hole
5.5 V
75 %
ITE (Commercial)
4000 V
2
Isolated Module
2 W
85 °C
-40 °C
9 PC Pad
24-DIP Module
150 mA
-5 V
150 mA
Murata Power Solutions Inc.
PWR1307AC
Murata Power Solutions Inc.
PWR1301AC
10.2 mm, 20.5 mm, 32.3 mm
1.27 in
0.81 in
0.4 "
4.5 V
12 V
Through Hole
5.5 V
125 mA
75 %
ITE (Commercial)
4000 V
1
Isolated Module
2 W
85 °C
-40 °C
9 PC Pad
24-DIP Module
Murata Power Solutions Inc.
PWR1307AC
10.2 mm, 20.5 mm, 32.3 mm
1.27 in
0.81 in
0.4 "
10.8 V
12 V
Through Hole
13.2 V
125 mA
75 %
ITE (Commercial)
4000 V
1
Isolated Module
2 W
85 °C
-40 °C
9 PC Pad
24-DIP Module

Description

General part information

PWR13 Series

Isolated Module DC DC Converter 1 Output 5V 300mA 4.5V - 5.5V Input
