4132-D

Active

BRADY

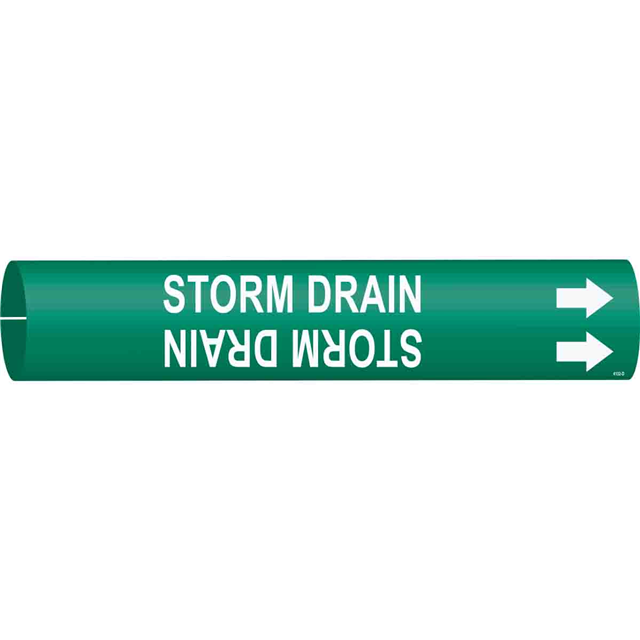

378-06-014132-D STORM DRAIN/GRN/

Search across all available documentation for this part.

Active

BRADY

378-06-014132-D STORM DRAIN/GRN/

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4132-D	4132 Series

Application Specifics	Notice	Notice
Applications	Pipe	Pipe
Arrangement	Text Only	Text Only
Color	-	White Legend, Green Background
Color - Background	Green	Green
Color - Legend	White	White
Features	Chemical Resistant, Abrasion Resistant	Chemical Resistant, Abrasion Resistant
Label Size	-	50.8 mm
Label Size	-	2 in
Label Size	-	330.2 mm
Label Size	-	13 in
Label Size	-	609.6 - 812.8 mm
Label Size	-	24 - 32 in
Label Size	-	10 in
Label Size	-	254 mm
Label Size	-	0.88 "
Label Size	-	228.6 mm
Label Size	-	9 "
Label Size	-	22.2 mm
Label Type	-	Storm Drain
Language	English	English
Legend (Symbol Only)	False	False
Legend (Text)	Storm Drain	Storm Drain
Length	71.44 mm	71.44 mm
Length	2.813 in	2.813 in
Location	Outdoor	Outdoor
Material	-	Plastic
Material - Body	Plastic	Plastic
Mounting Type	Snap On	Snap On
Outside Pipe Diameter (Min) [Min] [diameter]	152.4 mm	152.4 mm
Outside Pipe Diameter (Min) [Min] [diameter]	6 in	6 in
Print Type	Pre-Printed	Pre-Printed
Shape	Square	Square
Width [y]	71.44 mm	71.44 mm
Width [y]	2.813 in	2.813 in

4132-C STORM DRAIN/GRN/STY C

Part	Label Type	Material	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Color	Label Size [x]	Label Size [x]	Label Size [y]	Label Size [y]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Features	Width [y]	Width [y]	Material - Body	Applications	Color - Background	Mounting Type	Legend (Text)	Color - Legend	Location	Language	Shape	Length	Length	Arrangement	Print Type	Application Specifics	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]
BRADY 4132-C	Storm Drain	Plastic	50.8 mm	2 in	330.2 mm	13 in	White Legend, Green Background
BRADY 4132-H	Storm Drain	Plastic					White Legend, Green Background	812.8 mm	32 in	10 in	254 mm
BRADY 4132-G	Storm Drain	Plastic					White Legend, Green Background	609.6 mm	24 in	10 in	254 mm
BRADY 4132-B	Storm Drain	Plastic					White Legend, Green Background					0.88 "	228.6 mm	9 "	22.2 mm
BRADY 4132-F	Storm Drain	Plastic					White Legend, Green Background
BRADY 4132-D																Abrasion Resistant, Chemical Resistant	71.44 mm	2.813 in	Plastic	Pipe	Green	Snap On	Storm Drain	White	Outdoor	English	Square	71.44 mm	2.813 in	Text Only	Pre-Printed	Notice	152.4 mm	6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.18
