1-1326032-1
ActiveTE Connectivity AMP Connectors

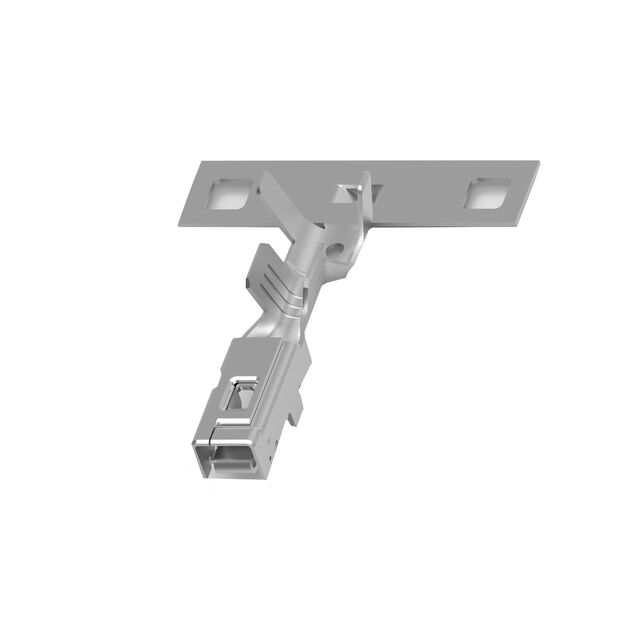

2.8MM RECP,SEAL,14AWG,REV REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1326032-1
ActiveTE Connectivity AMP Connectors
2.8MM RECP,SEAL,14AWG,REV REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1326032-1 | 1326032 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 31.5 µin | 31.5 µin |
| Contact Finish Thickness | 0.8 µm | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power |
| Wire Gauge | 13.5 AWG | 12 - 20 AWG |
1326032 Series
CONN SOCKET 20AWG CRIMP TIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Type | Contact Termination | Wire Gauge | Pin or Socket | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1326032-2 | 31.5 µin | 0.8 µm | Power | Crimp | 20 AWG | Socket | Tin |
TE Connectivity AMP Connectors 1326032-3 | 31.5 µin | 0.8 µm | Power | Crimp | 18 AWG | Socket | Tin |
TE Connectivity AMP Connectors 1-1326032-1 | 31.5 µin | 0.8 µm | Power | Crimp | 13.5 AWG | Socket | Tin |
TE Connectivity AMP Connectors 1326032-6 | 31.5 µin | 0.8 µm | Power | Crimp | 12 AWG | Socket | Tin |
TE Connectivity AMP Connectors 1326032-8 | 31.5 µin | 0.8 µm | Power | Crimp | 20 AWG | Socket | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.33 | |||
| Tape & Reel (TR) | 2250 | $ 0.23 | ||
| 4500 | $ 0.22 | |||
| 6750 | $ 0.21 | |||
| 11250 | $ 0.19 | |||
| 15750 | $ 0.19 | |||
Description
General part information
1326032 Series
Socket Contact Tin 14 AWG Crimp Power
