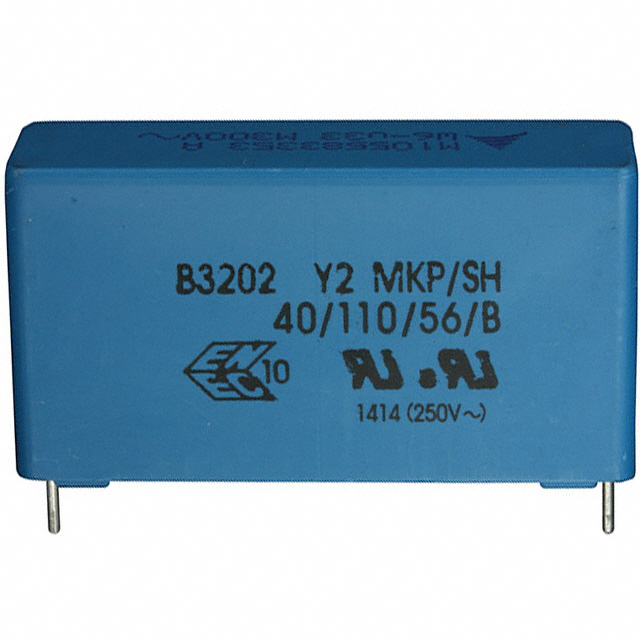

Specification	B32026A3684M000

Applications	RFI Suppression, EMI
Capacitance	0.68 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	1.122 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	Y2
Size / Dimension Length	1.634 in
Size / Dimension Width	0.63 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	300 V
Voltage Rating - DC	1500 V
