Description
General part information
00407196

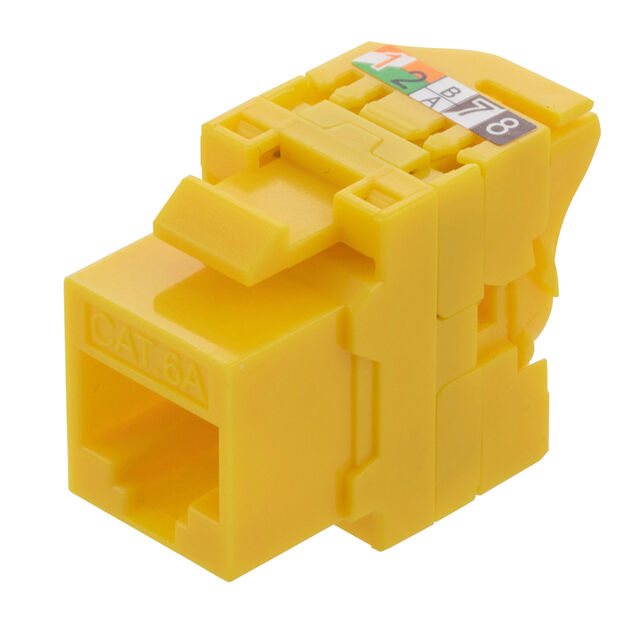

Insert Modular Jack 8p8c (RJ45, Ethernet) To Modular Jack 8p8c (RJ45, Ethernet) Yellow
Technical Specifications
Parameters and characteristics for this part
| Specification | 00407196 |
|---|---|
| Current | 20 mOhm |
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 3 µin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | Yellow |
| Exterior Housing Material | Polycarbonate (PC) |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Interior Contact Finish | Tin |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | Yellow |
| Interior Housing Material | Polycarbonate (PC) |
| Interior Type (Adapter End) | Ethernet), Modular Jack 8p8c (RJ45 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat6a |
| Style | Modular |
