3-111-519
ActiveSCHURTER Inc.

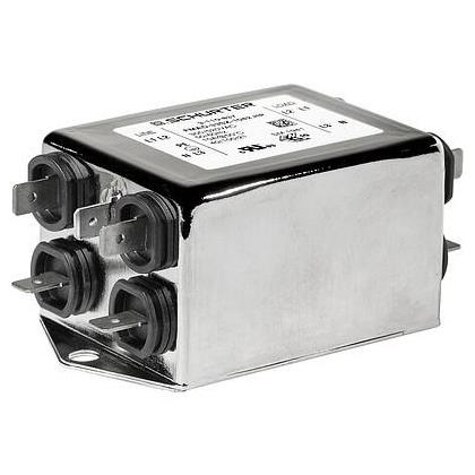

POWER LINE FILTERS FMAD CP FILT 3PH+N 1ST 16A 520VAC IND HP
3-111-519
ActiveSCHURTER Inc.
POWER LINE FILTERS FMAD CP FILT 3PH+N 1ST 16A 520VAC IND HP
Description
General part information
3-111-519
POWER LINE FILTERS FMAD CP FILT 3PH+N 1ST 16A 520VAC IND HP
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-111-519 |
|---|---|
| Applications | Photovoltaic Inverter |
| Approval Agency | CE, UKCA, cURus, ENEC, VDE |
| Configuration | Single Stage |
| Current | 16 A |
| Filter Subtype | Wye |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 520V, 300V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
