ULV7F2BSS341

Active

E-Switch

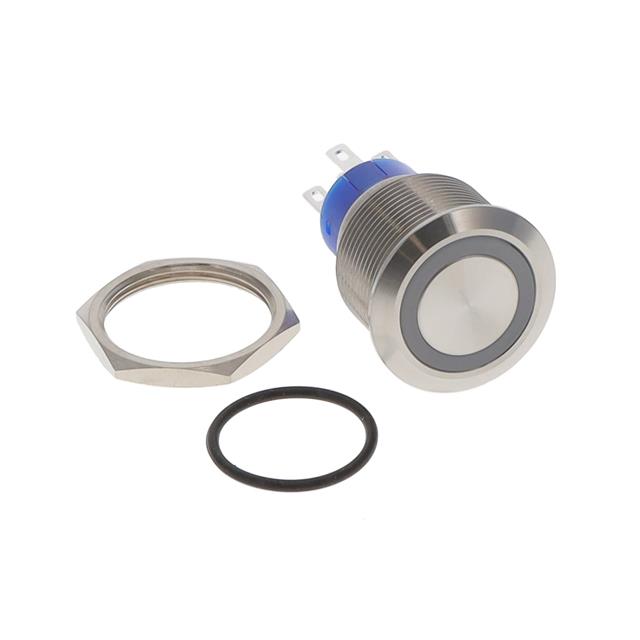

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

ULV7F2BSS341

Active

E-Switch

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.82
		20	$ 12.55
		40	$ 12.41

Description

General part information

ULV7 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ULV7F2BSS341	ULV7 Series

Actuator Marking	-	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT, DPDT
Color - Actuator/Cap	Silver	Silver, Black
Current Rating (Amps)	3 A	3 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination Type, Color	LED, Blue	LED, Green, Red, Blue, Yellow
Illumination Voltage (Nominal)	3 VDC	3 - 220 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	500000 - 1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	22 mm	22 - 22.2 mm
Switch Function	On-Mom	On-Mom, On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, Wire Leads
Termination Style	2.8 mm	2.8 mm
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V	125 - 250 V

ULV7 Series

SWITCH PUSHBUTTON SPDT 3A 250V

Part	Termination Style	Termination Style	Termination Style	Electrical Life	Voltage Rating - AC	Ingress Protection	Illumination Type, Color	Mounting Type	Illumination Voltage (Nominal)	Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Color - Actuator/Cap	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Current Rating (Amps)
E-Switch ULV7F2BSS331	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	Green, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Silver	Button, Flush, Round	SPDT	22.2 mm	No Marking	3 A
E-Switch ULV7FPG11311				50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	LED, Red	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles			On-On	Black	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
E-Switch ULV7F2BSS341	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Silver	Button, Flush, Round	SPDT	22 mm		3 A
E-Switch ULV7F2G11331	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Green, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-On	Black	Button, Flush, Round	DPDT	22 mm		3 A
E-Switch ULV7F23SS311	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	LED, Red	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles	55 °C	-20 C	On-On	Silver	Button, Flush, Round	SPDT	22.2 mm	No Marking	3 A
E-Switch ULV7F2HSLL16L21	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	LED, Red	Panel Mount, Front		Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Silver	Button, Flush, Round	DPDT	22 mm	No Marking	3 A
E-Switch ULV7F2GSS341	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles	55 °C	-20 C	On-On	Silver	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
E-Switch ULV7FPBSS331				50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Green, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles			On-Mom	Silver	Button, Flush, Round	SPDT	22.2 mm	No Marking	3 A
E-Switch ULV7F2H11341	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Black	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
E-Switch ULV7FPGSS341				50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles			On-On	Silver	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
