8403 0601000

Active

Belden Inc.

3 #20 PE SHLD PVC

Search across all available documentation for this part.

Active

Belden Inc.

3 #20 PE SHLD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8403 0601000

Cable Type	Microphone
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	600 V
Wire Gauge	20 AWG

Part	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Jacket Color	Wire Gauge	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Usage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length	Length
Belden Inc. 8403 0601000	90 %	6.2 mm	0.244 in	Double Braid	Chrome	20 AWG	Copper Tinned	0.838 mm	0.033 in	Viscose; Copper Tinned	Audio	Polyethylene (PE)	-20 C	80 C	Microphone	Poly-Vinyl Chloride (PVC)	600 V	19	32 AWG	3	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.05

General part information

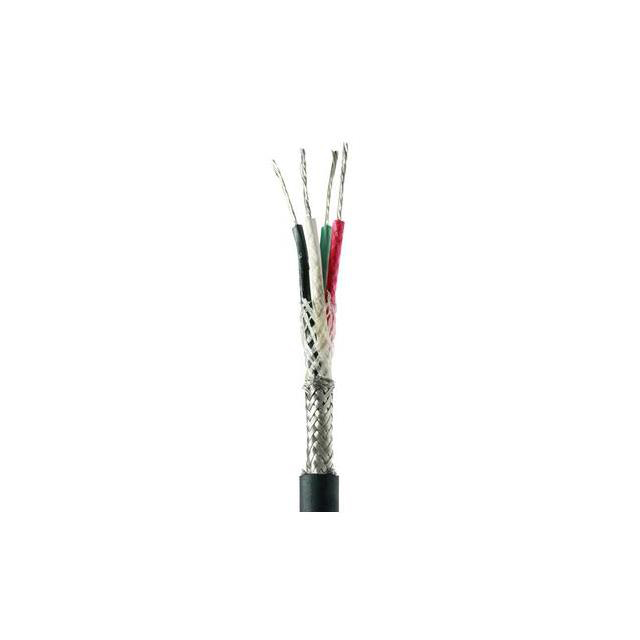

3 Conductor Microphone Cable Chrome 20 AWG Double Braid 1000.0' (304.8m)
