Description
General part information

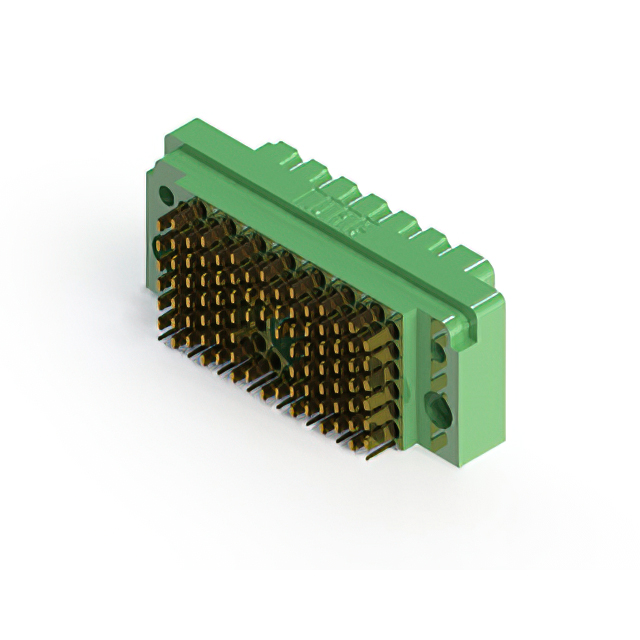

516-120-501-200
120 Connector Receptacle, Hermaphroditic Contacts Panel Mount Green Rack and Panel
Technical Specifications
Parameters and characteristics for this part
| Specification | 516-120-501-200 |
|---|---|
| Color | Green |
| Connector Style | Rack and Panel |
| Connector Type | Receptacle, Hermaphroditic Contacts |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Current Rating | 8.5 A |
| Features | Guide Pin, Jackscrew |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount |
| Number of Columns | 15 |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Number of Rows | 17 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.15 in |
| Termination | Solder |
