880636-1

Active

TE Connectivity Raychem Cable Protection

.250 SERIES FASTIN-

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

.250 SERIES FASTIN-

Technical Specifications

Parameters and characteristics for this part

Specification	880636-1

Contact Material	Brass
Gender	Male
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	3.71 mm
Insulation Diameter [Max] [diameter]	0.146 "
Insulation Diameter [Min] [diameter]	2.69 mm
Insulation Diameter [Min] [diameter]	0.106 in
Length - Overall	1.103 in
Length - Overall	28.02 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	15.7 mm
Tab Length	0.618 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp

Part	Tab Thickness	Tab Thickness	Mounting Type	Tab Length	Tab Length	Tab Width	Tab Width	Termination	Gender	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Material	Length - Overall	Length - Overall	Contact Finish	Terminal Type	Insulation
TE Connectivity Raychem Cable Protection 880636-2	0.032 in	0.81 mm	Free Hanging (In-Line)	15.7 mm	0.618 in	6.35 mm	0.25 in	Crimp	Male	3.71 mm	2.69 mm	0.146 "	0.106 in	Brass	1.103 in	28.02 mm	Tin	Standard	Non-Insulated
TE Connectivity Raychem Cable Protection 880636-1	0.032 in	0.81 mm	Free Hanging (In-Line)	15.7 mm	0.618 in	6.35 mm	0.25 in	Crimp	Male	3.71 mm	2.69 mm	0.146 "	0.106 in	Brass	1.103 in	28.02 mm		Standard	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100000	$ 0.11

General part information

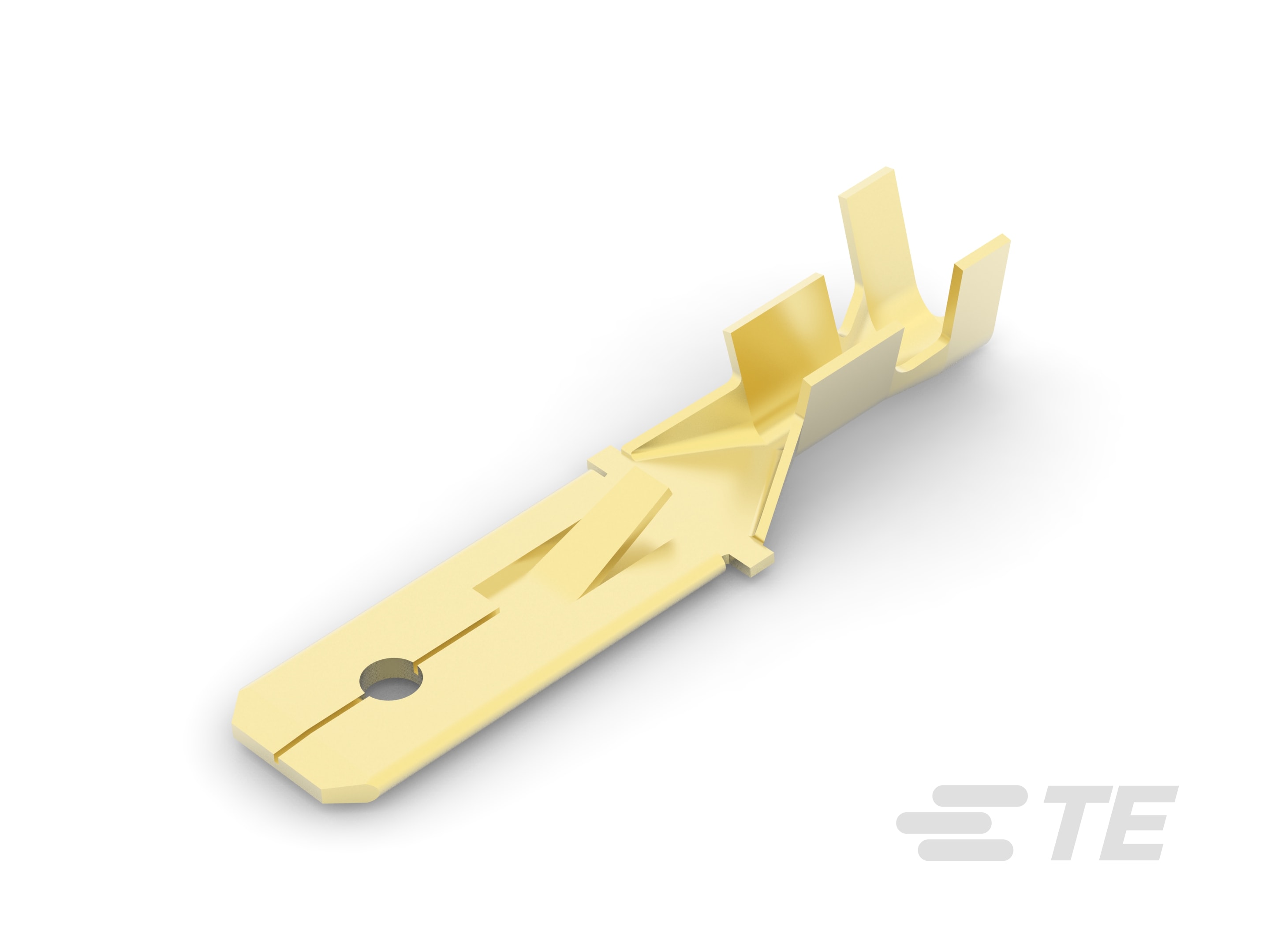

0.250" (6.35mm) Quick Connect Male Crimp Connector Non-Insulated
