VLF403212MT-1R0N-CA
ObsoleteTDK Corporation
FIXED IND 1UH 3.62A 31 MOHM SMD
VLF403212MT-1R0N-CA
ObsoleteTDK Corporation
FIXED IND 1UH 3.62A 31 MOHM SMD
Description
General part information
VLF403212MT-1R0N-CA

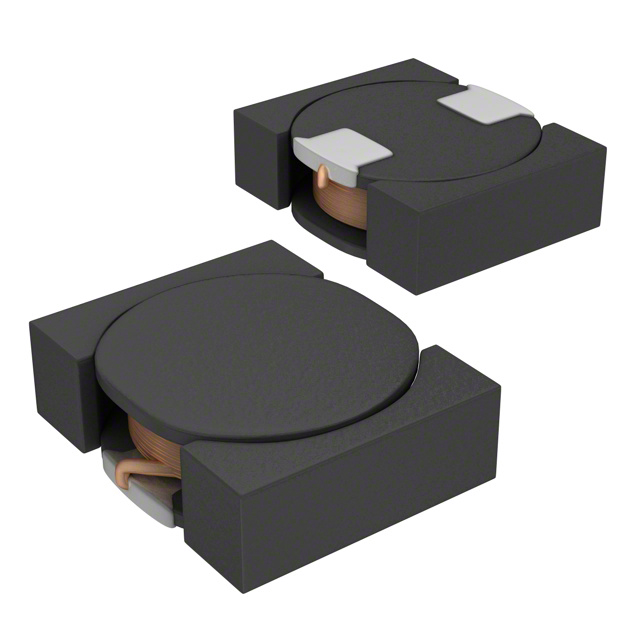

1 µH Shielded Drum Core, Wirewound Inductor 3.62 A 31mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLF403212MT-1R0N-CA |
|---|---|
| Current - Saturation (Isat) | 3 A |
| Current Rating | 3.62 A |
| DC Resistance (DCR) (Max) | 31 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
