1226
ActiveKeystone Electronics
CONN PC PIN CIRC 0.093DIA NICKEL
1226
ActiveKeystone Electronics
CONN PC PIN CIRC 0.093DIA NICKEL
Description
General part information
1226

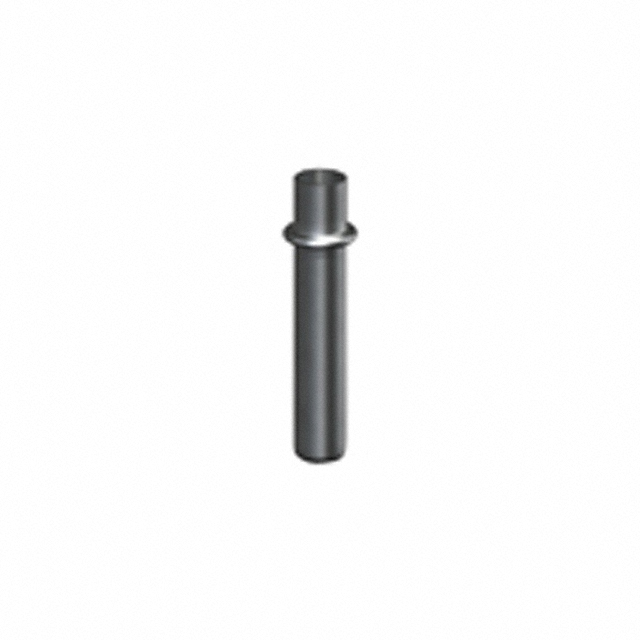

PC Pin Terminal Connector Through Hole Nickel 0.093" (2.36mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 1226 |
|---|---|
| Board Thickness (Option 1) | 0.062 in |
| Board Thickness (Option 2) | 0.093 in |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Flange Diameter | 0.13 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.411 in |
| Length - Below Flange | 0.125 in |
| Length - Overall | 0.562 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.093 in |
| Pin Size - Below Flange Diameter | 0.093 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Staking Flare |
