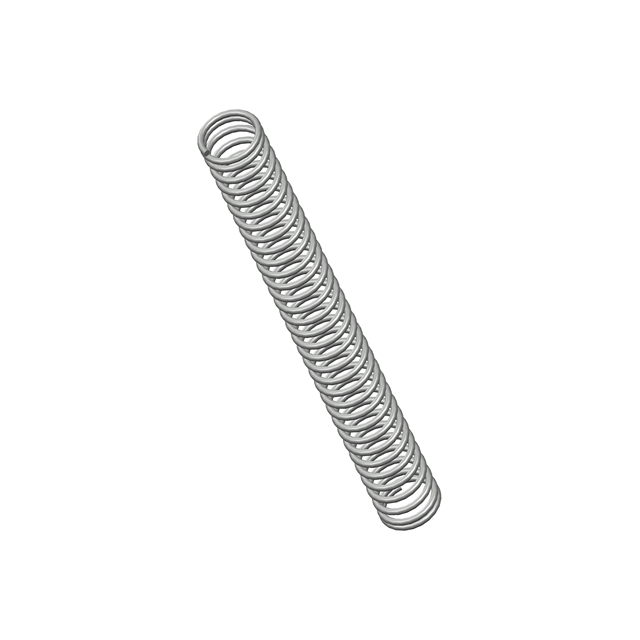

2984CS
ActiveCentury Spring Corp
COMP O= .125,L= 1.13,W= .013
2984CS
ActiveCentury Spring Corp
COMP O= .125,L= 1.13,W= .013
Description
General part information
2984CS
COMP O= .125,L= 1.13,W= .013
Technical Specifications
Parameters and characteristics for this part
| Specification | 2984CS |
|---|---|
| Diameter - Inside | 0.099 in |
| Diameter - Outside | 0.125 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.13 in |
| Material | Music Wire |
| Rate (lbs/in) | 0.94 lbs/in |
| Type | Compression |
| Wire Diameter | 0.013 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
