Q-020410001018i

Active

Amphenol Custom Cable

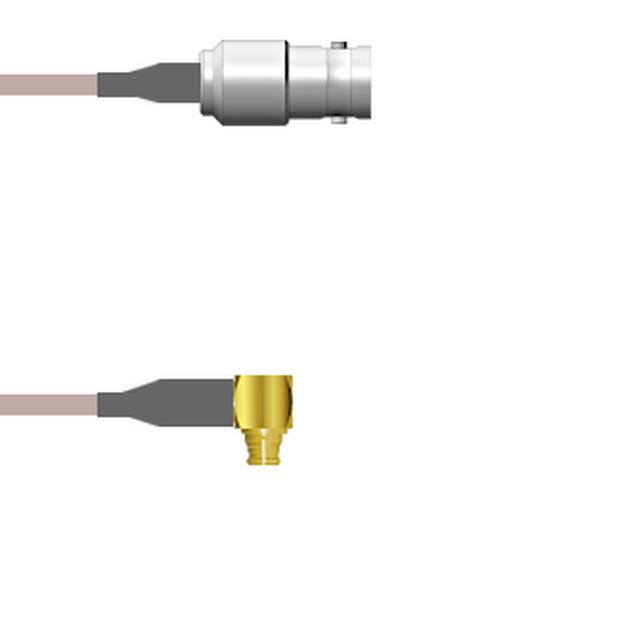

CBL ASSY BNC-SMP JACK-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-020410001018i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMP JACK-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-020410001018i	Q-020410 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	SMP Plug, Right Angle	SMP Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	-	3 - 118.1 "
Length	-	1 - 1200 mm
Length	-	3.3 - 9.8 ft
Length	-	9.843 "
Length [x]	457.2 mm	457.2 mm
Length [x]	457.2 mm	250 - 457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to SMP	BNC to SMP

Q-020410 Series

CBL ASSY BNC-SMP JACK-PLUG 9"

Part	2nd Connector Mounting Type	1st Connector	Length	Length	Style	1st Connector Mounting Type	Features	Cable Type	Frequency - Max [Max]	Overall Impedance	2nd Connector	2nd Contact Gender	1st Contact Gender	Color	Length
Amphenol Custom Cable Q-020410001009i	Free Hanging (In-Line)	BNC Jack	9 "	228.6 mm	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper
Amphenol Custom Cable Q-020410001072i	Free Hanging (In-Line)	BNC Jack	72 in	1.8 m	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper	6 ft
Amphenol Custom Cable Q-020410001036i	Free Hanging (In-Line)	BNC Jack	36 in	91.44 cm	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper
Amphenol Custom Cable Q-020410001024i	Free Hanging (In-Line)	BNC Jack	24 "	609.6 mm	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper
Amphenol Custom Cable Q-020410001001M	Free Hanging (In-Line)	BNC Jack	39.4 in	1 m	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper	3.3 ft
Amphenol Custom Cable Q-020410001002M	Free Hanging (In-Line)	BNC Jack	78.7 in	2 m	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper	6.6 ft
Amphenol Custom Cable Q-020410001012i	Free Hanging (In-Line)	BNC Jack	12 "	304.8 mm	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper
Amphenol Custom Cable Q-0204100010.5M	Free Hanging (In-Line)	BNC Jack	19.69 "	50 cm	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper
Amphenol Custom Cable Q-020410001003i	Free Hanging (In-Line)	BNC Jack	3 in	76.2 mm	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper
Amphenol Custom Cable Q-020410001006i	Free Hanging (In-Line)	BNC Jack	6 in	152.4 mm	BNC to SMP	Free Hanging (In-Line)	Shielded	RG-178	4 GHz	50 Ohms	SMP Plug, Right Angle	Male	Female	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 131.46
		25	$ 128.91
		50	$ 126.35
		100	$ 123.79
		250	$ 121.24

Description

General part information

Q-020410 Series

Cable Assembly Coaxial BNC to SMP RG-178 18.00" (457.20mm)
