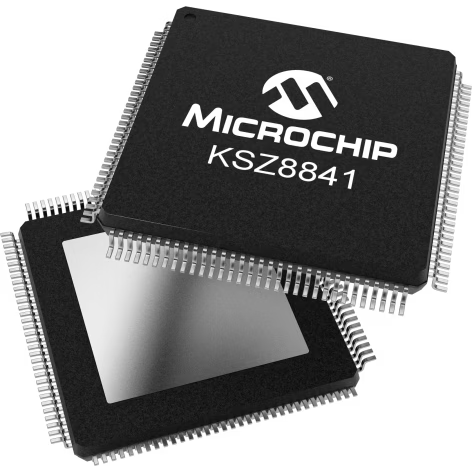

KSZ8841-32MQL

KSZ8841-32MQL

Active
Microchip Technology

10/100 BASE-T/TX ETHERNET CONTROLLER WITH PCI AND HOST BUS INTERFACE

Find alt
KSZ8841-32MQL

KSZ8841-32MQL

Active
Microchip Technology

10/100 BASE-T/TX ETHERNET CONTROLLER WITH PCI AND HOST BUS INTERFACE

Find alt

Description

General part information

KSZ8841 Series

The KSZ8841-series of single-port controllers includes PCI and non-PCI CPU interfaces.

The KSZ8841-PMQL datasheet describes PCI CPU interface chips. KSZ8841-PMQL is PQFP package chip. For information on the non-PCI controller, refer to the KSZ8841-MQL datasheet.

The KSZ8841-PMQL is a single port Fast Ethernet MAC chip with 32-bit/33MHz PCI processor interface. Fully compliant with IEEE 802.3u, it is also available in industrial temperature grades. The KSZ8841MQL has 32-, 16- or 8-bit generic host processor interface.

Technical Specifications

Parameters and characteristics for this part

SpecificationKSZ8841-32MQL
Current - Supply100 mA
FunctionMAC Controller
InterfacePCI
Operating Temperature (Max)70 °C
Operating Temperature (Min)0 °C
Package / Case128-BFQFP
Package Length14 mm
Package Name128-PQFP
Package Width20 mm
ProtocolEthernet
Standards10BASE-T, 100BASE-T, 10BASE-TX, 100BASE-TX
Voltage - Supply (Maximum)3.5 V
Voltage - Supply (Minimum)3.1 V
