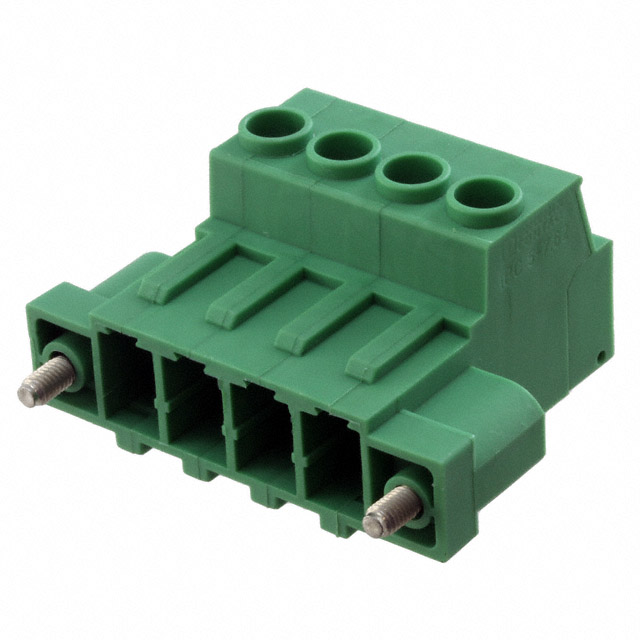

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1709173 | IPC Series |
|---|---|---|
| Color | Green | Green |
| Contact Mating Finish | Tin | Silver, Tin |
| Contact Tail Length | - | 4.6 mm |
| Contact Tail Length | - | 0.181 in |
| Current - IEC | 41 A | 41 - 125 A |
| Current - UL | 41 A | 41 - 115 A |
| Features | Mating Flange | Mating and Mounting Flange, Mating Flange |
| Header Orientation | - | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon | Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon |
| Insulation Height | - | 1.094 - 1.122 in |
| Insulation Height | - | 27.8 - 28.5 mm |
| Insulation Height [z] | 0.902 " | 0.902 " |
| Insulation Height [z] | 22.9 mm | 22.9 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 4 | 2 - 10 |
| Pitch [x] | 0.3 in | 0.3 - 0.591 in |
| Pitch [x] | 7.62 mm | 7.62 - 15 mm |
| Positions Per Level | 4 | 2 - 10 |
| Screw Size | M3 | M3, M4 |
| Termination Style | Screw - Rising Cage Clamp | Solder, Screw - Rising Cage Clamp |
| Torque - Screw [Max] | 7.1 Lb-In | 7.1 - 15.9 Lb-In |
| Torque - Screw [Max] | 0.8 Nm | 0.8 - 1.8 Nm |
| Torque - Screw [Min] | 0.7 Nm | 0.7 - 1.7 Nm |
| Torque - Screw [Min] | 6.2 Lb-In | 6.2 - 15 Lb-In |
| Type | - | Header, Blade Sockets |
| Voltage - IEC | 1 kV | 1 kV |
| Wire Gauge or Range - AWG [Max] | 24 AWG | 20 - 24 AWG |
| Wire Gauge or Range - AWG [Min] | 8 AWG | 6 - 8 AWG |
| Wire Gauge or Range - mm˛ | - | 0.2 - 0.75 mm˛ |
| Wire Gauge or Range - mm˛ | - | 10 - 16 mm˛ |
| Wire Gauge or Range - mm² [Max] | 10 mm² | 10 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² | 0.2 mm² |
| Wire Strip Length | 10 mm | 10 - 12 mm |
IPC Series
Pluggable Terminal Blocks 4 Pos 10.16mm pitch Thru Hole Invert Hdr
| Part | Mounting Type | Features | Type | Material Flammability Rating | Header Orientation | Voltage - IEC | Number of Levels | Housing Material | Insulation Height | Insulation Height | Current - UL | Positions Per Level | Termination Style | Contact Tail Length | Contact Tail Length | Contact Mating Finish | Current - IEC | Color | Pitch [x] | Pitch [x] | Wire Strip Length | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Number of Positions | Insulation Height [z] | Insulation Height [z] | Screw Size | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1784923 | Through Hole | Mating and Mounting Flange | Header, Blade Sockets | UL94 V-0 | 90°, Right Angle | 1 kV | 1 | Polybutylene Terephthalate (PBT) | 1.122 in | 28.5 mm | 115 A | 3 | Solder | 4.6 mm | 0.181 in | Silver | 125 A | Green | 0.591 in | 15 mm | |||||||||||||||
Phoenix Contact 1709128 | Free Hanging (In-Line) | UL94 V-0 | 1 kV | 1 | Polyamide (PA), Nylon | 41 A | 10 | Screw - Rising Cage Clamp | Tin | 41 A | Green | 0.3 in | 7.62 mm | 10 mm | 24 AWG | 8 AWG | 7.1 Lb-In | 0.7 Nm | 6.2 Lb-In | 0.8 Nm | 0.2 mm˛ | 10 mm˛ | 10 | 0.902 " | 22.9 mm | M3 | |||||||||
Phoenix Contact 1709173 | Free Hanging (In-Line) | Mating Flange | UL94 V-0 | 1 kV | 1 | Polyamide (PA), Nylon | 41 A | 4 | Screw - Rising Cage Clamp | Tin | 41 A | Green | 0.3 in | 7.62 mm | 10 mm | 24 AWG | 8 AWG | 7.1 Lb-In | 0.7 Nm | 6.2 Lb-In | 0.8 Nm | 4 | 0.902 " | 22.9 mm | M3 | 10 mm² | 0.2 mm² | ||||||||
Phoenix Contact 1975817 | Free Hanging (In-Line) | Mating Flange | UL94 V-0 | 1 kV | 1 | Polyamide (PA), Nylon | 1.094 " | 27.8 mm | 55 A | 2 | Screw - Rising Cage Clamp | Silver | 76 A | Green | 0.4 in | 10.16 mm | 12 mm | 20 AWG | 6 AWG | 15.9 Lb-In | 1.7 Nm | 15 Lb-In | 1.8 Nm | 0.75 mm˛ | 16 mm˛ | 2 | M4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IPC Series
Pluggable Terminal Blocks 4 Pos 10.16mm pitch Thru Hole Invert Hdr
