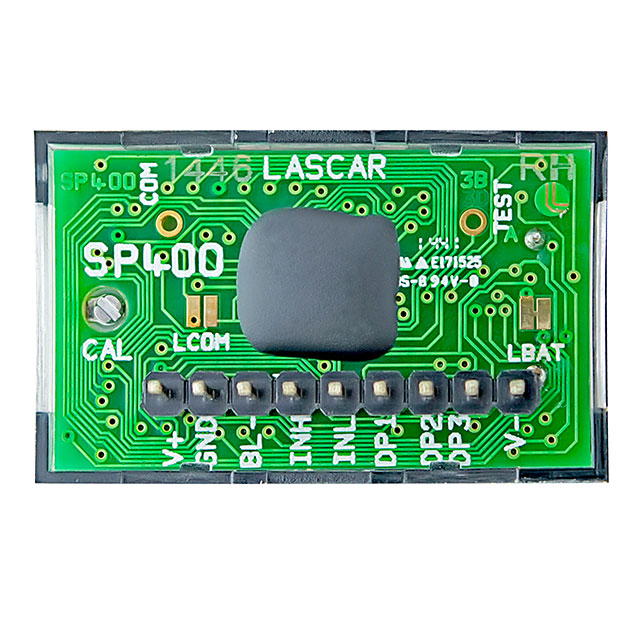

SP 400-BLUE
ActiveLascar Electronics
VOLTMETER 0-200MVDC LCD PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP 400-BLUE
ActiveLascar Electronics
VOLTMETER 0-200MVDC LCD PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP 400-BLUE |
|---|---|
| Display Characters - Height [z] | 9.75 mm |
| Display Characters - Height [z] | 0.384 in |
| Measuring Range [Max] | 0.2 VDC |
| Measuring Range [Min] | -200 mV |
| Measuring Type | Voltage |
| Number of Characters Per Row | 3.5 |
| Output Type | Reference |
| Panel Cutout Dimensions [x] | 34 mm |
| Panel Cutout Dimensions [y] | 21.3 mm |
| Termination Style | PC Pin |
| Type | Voltmeter |
| Voltage - Supply [Max] | 7.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 53.51 | |
| 10 | $ 45.99 | |||
Description
General part information
SP 400 Series
Voltmeter LCD - Black Characters, Green Backlight Display Panel Mount
Documents
Technical documentation and resources
