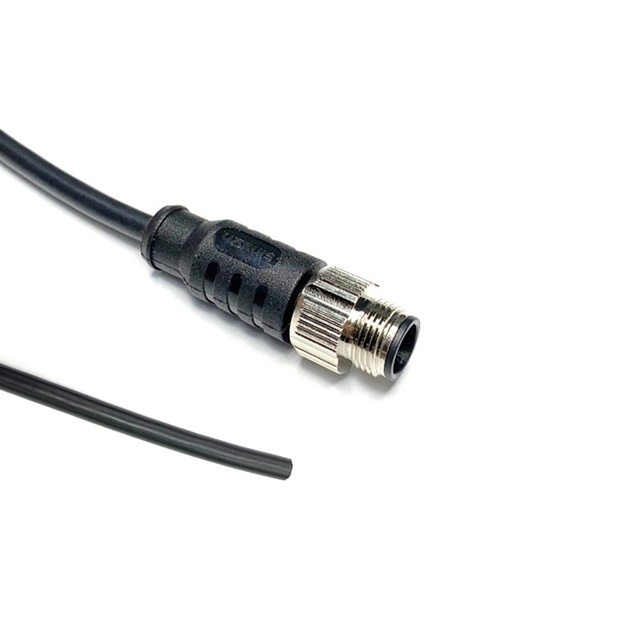

M12A-05CMS00-UL24N10

Active

SINBON

CIRC CBL 5POS RCPT TO WIRE 3.28'

Search across all available documentation for this part.

Active

SINBON

CIRC CBL 5POS RCPT TO WIRE 3.28'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M12A-05CMS00-UL24N10	M12A Series

1st Connector Gender	Male Pins	Female Sockets, Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	5	5
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Shell Size - Insert	M12	M12
1st Connector Type	Receptacle	Plug, Receptacle
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Type	Round	Round
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length [x]	1 m	1 m
Length [x]	3.28 ft	3.28 ft
Shielding	Unshielded	Unshielded
Usage	Industrial Environments	Industrial Environments

CIRC CBL 5POS PLUG TO WIRE 3.28'

Part	1st Connector Mounting Type	Assembly Configuration	1st Connector Type	1st Connector Number of Positions	Usage	1st Connector Orientation [custom]	2nd Connector Type	Length [x]	Length [x]	1st Connector Gender	Ingress Protection	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	Shielding	Cable Type
SINBON M12A-05CFS00-UL24N10	Free Hanging (In-Line)	Standard	Plug	5	Industrial Environments	Keyed	Wire Leads	1 m	3.28 ft	Female Sockets	IP67 - Dust Tight, Waterproof	M12	All	Unshielded	Round
SINBON M12A-05CMS00-UL24N10	Free Hanging (In-Line)	Standard	Receptacle	5	Industrial Environments	Keyed	Wire Leads	1 m	3.28 ft	Male Pins	IP67 - Dust Tight, Waterproof	M12	All	Unshielded	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
