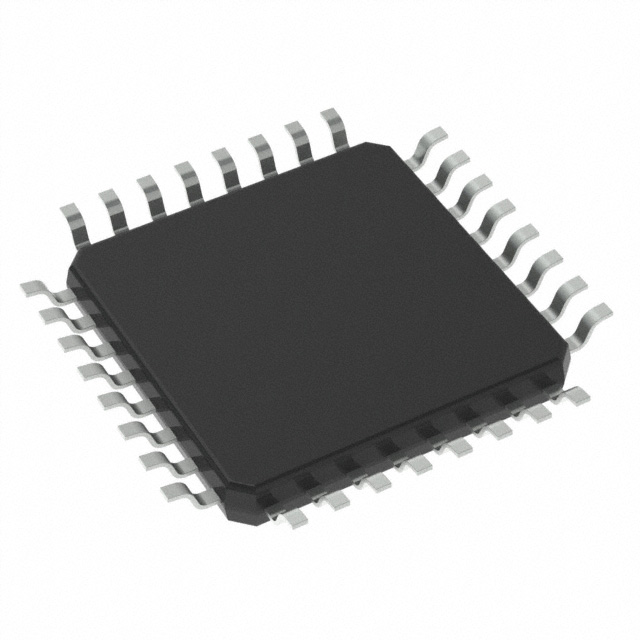

ATMEGA64C1-15AD
ActiveMCU 8-BIT AVR RISC 64KB FLASH 5V 32-PIN TQFP T/R AUTOMOTIVE AEC-Q100
Deep-Dive with AI
Search across all available documentation for this part.
ATMEGA64C1-15AD
ActiveMCU 8-BIT AVR RISC 64KB FLASH 5V 32-PIN TQFP T/R AUTOMOTIVE AEC-Q100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ATMEGA64C1-15AD | ATMEGA64C1 Series |
|---|---|---|
| Connectivity | SPI, CANbus, LINbus, UART/USART | SPI, CANbus, LINbus, UART/USART |
| Core Processor | AVR | AVR |
| Core Size | 8-Bit | 8-Bit |
| Data Converters [custom] | 10 b, 10 b | 10 b |
| Data Converters [custom] | 11, 1 | 1 - 11 |
| EEPROM Size | 2K x 8 | 2K x 8 |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 125 - 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 32-TQFP | 32-TQFP, 32-VQFN Exposed Pad |
| Peripherals | PWM, WDT, Brown-out Detect/Reset, POR, Temp Sensor | PWM, WDT, Brown-out Detect/Reset, POR, Temp Sensor |
| Program Memory Size | 64 KB | 64 KB |
| Program Memory Type | FLASH | FLASH |
| Qualification | AEC-Q100 | AEC-Q100 |
| RAM Size | 4K x 8 | 4K x 8 |
| Speed | 16 MHz | 16 MHz |
| Supplier Device Package | 32-TQFP (7x7) | 32-TQFP (7x7), 32-QFN (7x7) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V | 2.7 V |
ATMEGA64C1 Series
MCU 8-BIT AVR RISC 64KB FLASH 3.3V/5V 32-PIN LQFP T/R AUTOMOTIVE AEC-Q100
| Part | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Size | EEPROM Size | Data Converters [custom] | Data Converters [custom] | Package / Case | Connectivity | Oscillator Type | Core Size | Mounting Type | Peripherals | Program Memory Type | Speed | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | RAM Size | Core Processor | Supplier Device Package | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ATMEGA64C1-15AZ | 2.7 V | 5.5 V | 64 KB | 2K x 8 | 10 b, 10 b | 1, 11 | 32-TQFP | CANbus, LINbus, SPI, UART/USART | Internal | 8-Bit | Surface Mount | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | FLASH | 16 MHz | -40 °C | 125 °C | AEC-Q100 | 4K x 8 | AVR | 32-TQFP (7x7) | Automotive |
Microchip Technology ATMEGA64C1-15MD | 2.7 V | 5.5 V | 64 KB | 2K x 8 | 10 b, 10 b | 1, 11 | 32-VQFN Exposed Pad | CANbus, LINbus, SPI, UART/USART | Internal | 8-Bit | Surface Mount | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | FLASH | 16 MHz | -40 °C | 150 °C | AEC-Q100 | 4K x 8 | AVR | 32-QFN (7x7) | Automotive |
Microchip Technology ATMEGA64C1-15MZ | 2.7 V | 5.5 V | 64 KB | 2K x 8 | 10 b, 10 b | 1, 11 | 32-VQFN Exposed Pad | CANbus, LINbus, SPI, UART/USART | Internal | 8-Bit | Surface Mount | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | FLASH | 16 MHz | -40 °C | 125 °C | AEC-Q100 | 4K x 8 | AVR | 32-QFN (7x7) | Automotive |
Microchip Technology ATMEGA64C1-15AD | 2.7 V | 5.5 V | 64 KB | 2K x 8 | 10 b, 10 b | 1, 11 | 32-TQFP | CANbus, LINbus, SPI, UART/USART | Internal | 8-Bit | Surface Mount | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | FLASH | 16 MHz | -40 °C | 150 °C | AEC-Q100 | 4K x 8 | AVR | 32-TQFP (7x7) | Automotive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | T/R | 1 | $ 6.42 | |
| 25 | $ 5.87 | |||
| 100 | $ 5.32 | |||
| 1000 | $ 4.90 | |||
| 5000 | $ 4.67 | |||
Description
General part information
ATMEGA64C1 Series
The high-performance, low-power Microchip 8-bit AVR® RISC-based microcontroller combines 64 KB ISP Flash memory with read-while-write capabilities, 2 KB EEPROM, 4 KB SRAM, 27 general purpose I/O lines, 32 general purpose working registers, two flexible timer/counters with compare modes and PWM, one UART with HW LIN, an 11-channel 10-bit A/D converter with two differential programmable gain input stages, a 10-bit D/A converter, a programmable watchdog timer with an internal individual oscillator, SPI serial port, an on-chip debug system, and four software selectable power saving modes. The device operates between 2.7-5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed.
Documents
Technical documentation and resources
