CSC04A03220KGPA
ActiveVishay Dale

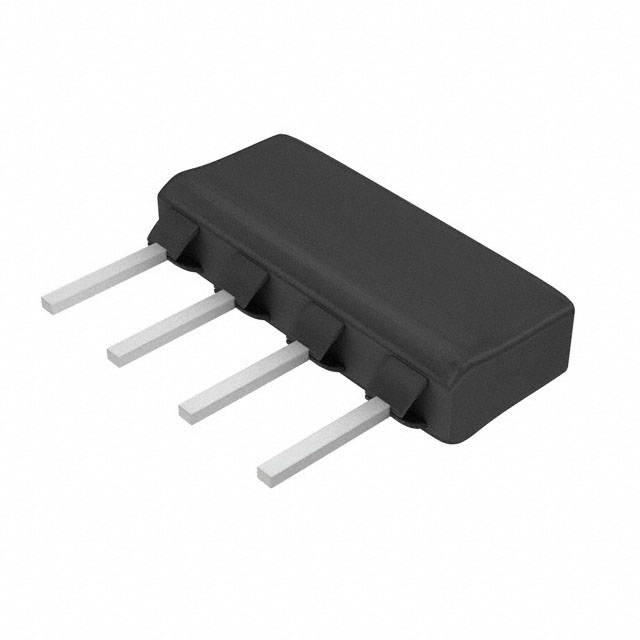

RES ARRAY 2 RES 220K OHM 4SIP
CSC04A03220KGPA
ActiveVishay Dale
RES ARRAY 2 RES 220K OHM 4SIP
Description
General part information
CSC04A03220KGPA
220k Ohm ±2% 300mW Power Per Element Isolated 2 Resistor Network/Array ±100ppm/°C 4-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | CSC04A03220KGPA |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.195 in |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Number of Resistors | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4-SIP |
| Package Name | 4-SIP |
| Power Per Element | 300 mW |
| Resistance | 220 kOhm |
| Resistor Ratio Drift | 50 ppm/°C |
| Size / Dimension Length | 0.39 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
