9512 0601000

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9512 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Direct Burial, Ripcord, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.295 in
Jacket (Insulation) Diameter [diameter]	7.49 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	22 AWG

Part	For Use With/Related Products	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Jacket (Insulation) Material	Features	Cable Type	Shield Coverage	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket Color	Number of Conductors	Wire Gauge	Ratings	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Material	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Usage
Belden Inc. 9512-1901	Enclosures	Wire Manager	25.4 mm	19 in	482.6 mm	1 in	Black
Belden Inc. 9512 0601000								Poly-Vinyl Chloride (PVC)	Direct Burial Drain Wire Ripcord UV Resistant	Multi-Pair	100 %	Copper Tinned	-30 ░C	105 ░C	300 V	Chrome	4	22 AWG	UL Style 2464	1000 ft	304.8 m	0.295 in	7.49 mm	Poly-Vinyl Chloride (PVC)	Aluminum	Foil	1.067 mm	0.042 in	7	30 AWG	Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.17

General part information

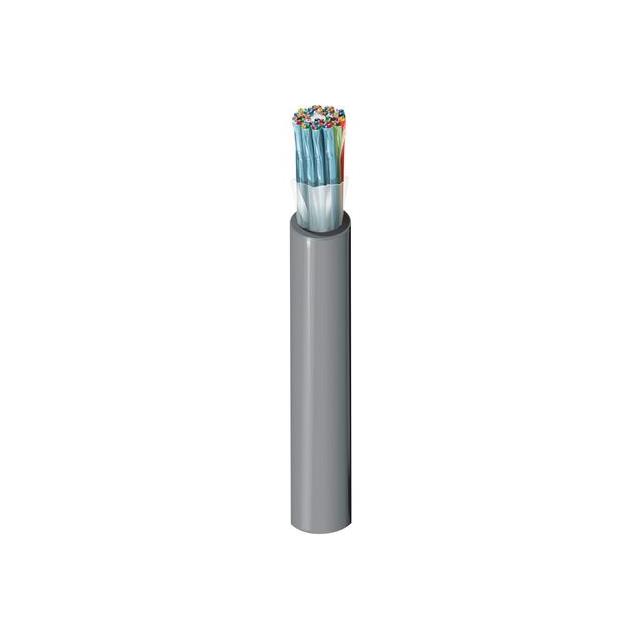

4 (2 Pair) Conductor Multi-Pair Cable Chrome 22 AWG Foil 1000.0' (304.8m)
