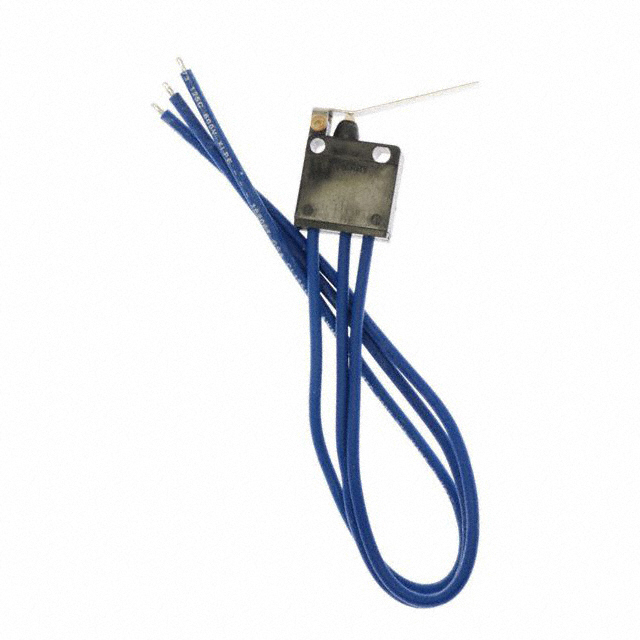

E72-40HT

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Overtravel	Overtravel	Termination Style	Actuator Type	Pretravel	Pretravel	Operating Force	Differential Travel	Differential Travel	Operating Position	Operating Position	Electrical Life
ZF Electronics E72-40HT	85 °C	-40 °C	SPDT	On-Mom	Chassis Mount	125 V	10 A	0.1 in	2.54 mm	Wire Leads	Lever Straight	0.275 in	7 mm	67 gf	0.6 mm	0.025 in	0.595 in	15.13 mm	6000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
