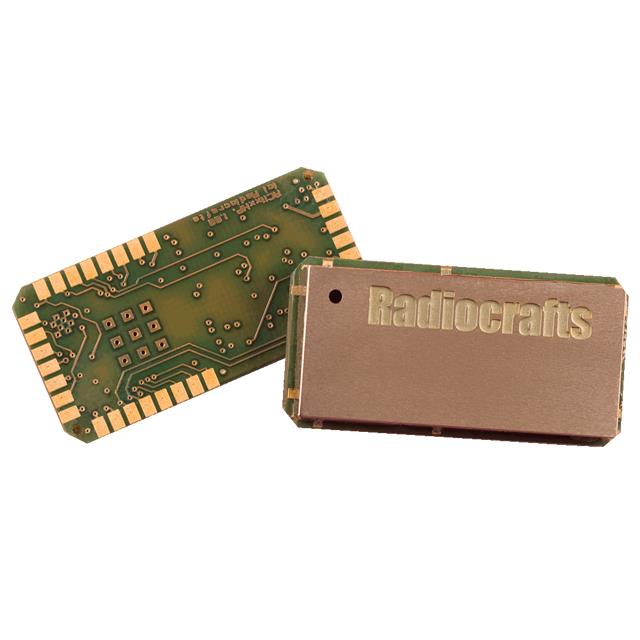

RC1171HP-TM

Active

Radiocrafts AS

RF TXRX MOD ISM<1GHZ CAST SMD

Search across all available documentation for this part.

Active

Radiocrafts AS

RF TXRX MOD ISM<1GHZ CAST SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RC1171HP-TM	RC1171 Series

Antenna Type	Antenna Not Included, Castellation	Antenna Not Included, Castellation
Applications	-	General Purpose
Current - Receiving	24 mA	24 mA
Current - Transmitting	560 mA	560 mA
Data Rate	100 Kbps	100 Kbps
Frequency [Max]	867 MHz	867 MHz
Frequency [Min]	865 MHz	865 MHz
Function	-	Transceiver, ZigBee™
Interface	-	USB
Modulation	GFSK	GFSK
Modulation or Protocol	-	802.15.4 Zigbee™
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	42-SMD Module	42-SMD Module
Power - Output	27 dBm	27 dBm
Protocol	Tinymesh	Tinymesh
RF Family/Standard	General ISM < 1GHz	General ISM < 1GHz
Sensitivity	-109 dBm	-109 dBm
Serial Interfaces	UART	UART
Utilized IC / Part	CC1110	CC1110
Voltage - Supply [Max]	3.3 V	3.3 V
Voltage - Supply [Min]	3 V	3 V

RF TXRX MOD ISM<1GHZ CAST SMD

Part	Power - Output	Sensitivity	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Utilized IC / Part	Frequency [Max]	Frequency [Min]	Mounting Type	Data Rate	Protocol	Serial Interfaces	Antenna Type	Modulation	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Package / Case	Applications	Modulation or Protocol	Function	Interface
Radiocrafts AS RC1171HP-TM	27 dBm	-109 dBm	3 V	3.3 V	560 mA	CC1110	867 MHz	865 MHz	Surface Mount	100 Kbps	Tinymesh	UART	Antenna Not Included, Castellation	GFSK	General ISM < 1GHz	85 °C	-40 °C	24 mA	42-SMD Module
Radiocrafts AS RC1171-TM-USB							867 MHz	865 MHz												General Purpose	802.15.4 Zigbee™	Transceiver, ZigBee™	USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	1000	$ 14.88

General part information

General ISM < 1GHz Tinymesh Transceiver Module 865MHz ~ 867MHz Antenna Not Included, Castellation Surface Mount
