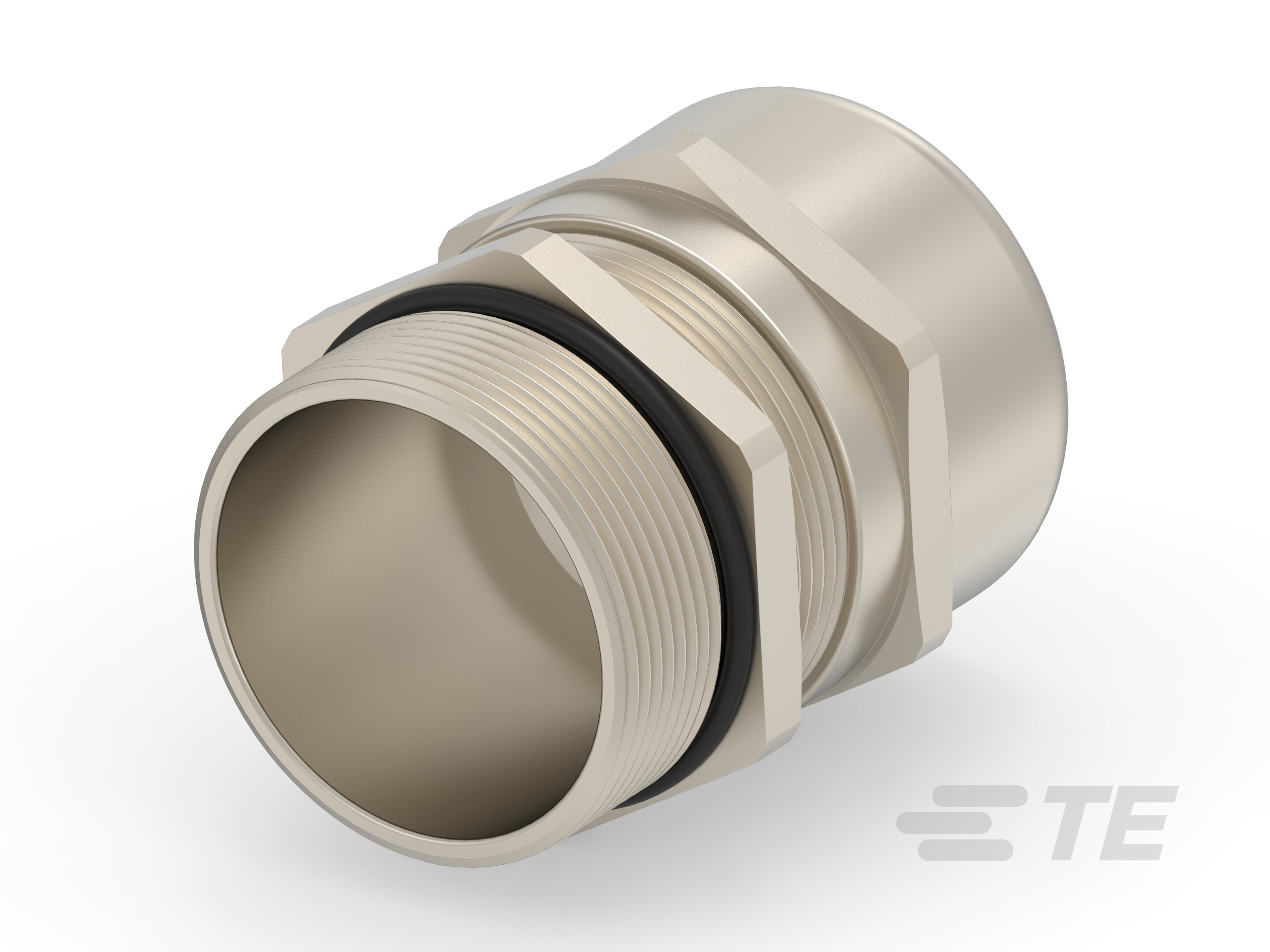

Specification	1SNG619012R0000

Color	Silver
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Nickel Plated, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.315 in
Outside Cable Diameter (Min)	0.197 in
Thread Diameter	40 mm
Thread Length	1.705 in
Thread Pitch	1.5 mm
Type	Cable Gland

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
