31-281.025

Active

EAO

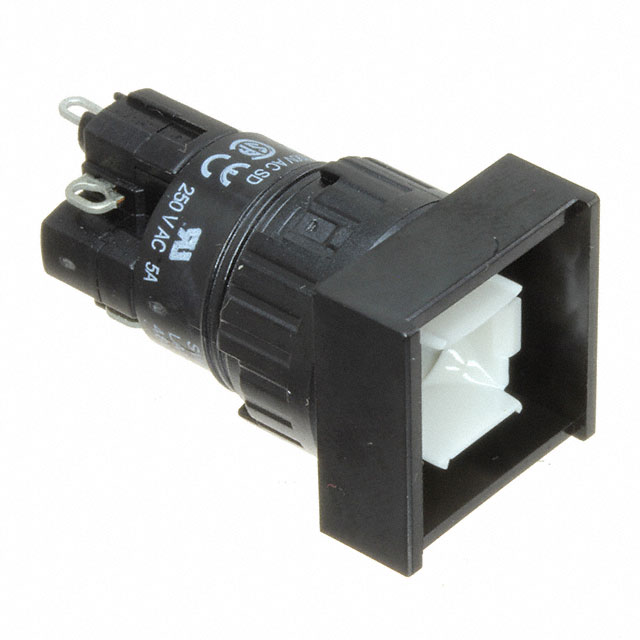

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	31-281.025

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

SWITCH PB DPST-NO/NC 5A 250V

Part	Actuator Type	Switch Function	Termination Style	Type	Mechanical Life	Ingress Protection	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]
EAO 31-281.025	Square, Button (Not Included)	Off-On, On-Off	Solder Lug	Standard	1000000 Cycles	IP40	250 V	5 A	Panel Mount, Front	DPST-NO/NC	16 mm	No Marking	55 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
