M24308/24-35F

Active

Amphenol Positronic

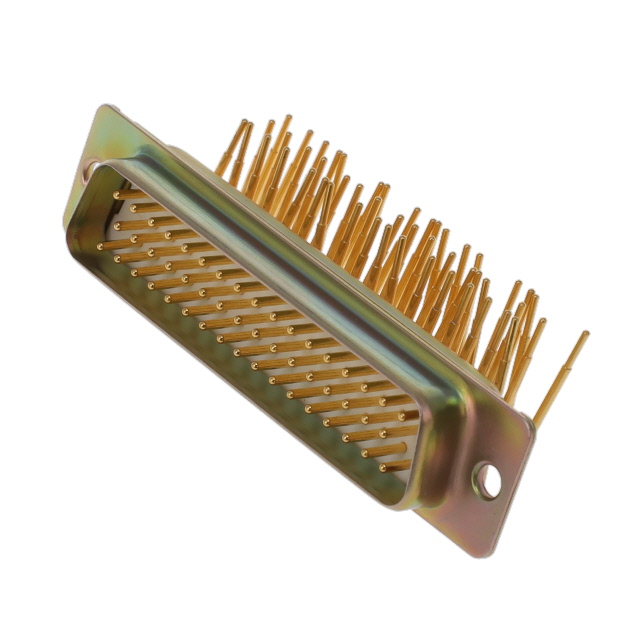

CONN D-SUB PLUG 50POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/24-35F

Active

Amphenol Positronic

CONN D-SUB PLUG 50POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M24308/24-35F	M24308/24 Series

Backset Spacing	0.283 in	0.283 in
Backset Spacing	7.2 mm	7.2 mm
Color	Natural	Natural
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	7.5 A	7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Features	Mounting Brackets	Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	50	15 - 50
Number of Rows	3	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel	Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	5	2 - 5
Shell Size, Connector Layout	-	DB, B
Shell Size, Connector Layout	-	3
Termination	Solder	Solder
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	20 AWG	20 AWG

M24308/24 Series

DSUB CONN,R/ANGLE, PLUG, CADMIUM

Part	Features	Termination	Shell Material, Finish	Contact Finish	Contact Material	Connector Type	Current Rating (Amps)	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Material Flammability Rating	Mounting Type	Flange Feature	Wire Gauge [Min]	Wire Gauge [Max]	Color	Number of Positions	Connector Style	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol Positronic M24308/24-32F	Mounting Brackets	Solder	Steel, Yellow Cadmium Plated	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	2	-55 °C	125 °C	2	0.283 in	7.2 mm	UL94 V-0	Panel Mount, Right Angle, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural	15	D-Sub	Polyester, Glass Filled
Amphenol Positronic M24308/24-5F		Solder	Steel, Yellow Cadmium Plated	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	3	-55 °C	125 °C	5			UL94 V-0	Panel Mount, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural	50	D-Sub	Polyester, Glass Filled
Amphenol Positronic M24308/24-27Z	Mounting Brackets	Solder	Steel, Yellow Chromate Plated Zinc	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	2	-55 °C	125 °C		0.283 in	7.2 mm	UL94 V-0	Panel Mount, Right Angle, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural		D-Sub	Polyester, Glass Filled	B, DB	3
Amphenol Positronic M24308/24-35F	Mounting Brackets	Solder	Steel, Yellow Cadmium Plated	Gold	Copper Alloy	Male Pins, Plug	7.5 A	Signal	3	-55 °C	125 °C	5	0.283 in	7.2 mm	UL94 V-0	Panel Mount, Right Angle, Through Hole	Housing/Shell (Unthreaded)	20 AWG	26 AWG	Natural	50	D-Sub	Polyester, Glass Filled
