CARAEN3C4M07990
ActiveSwitchcraft Inc.

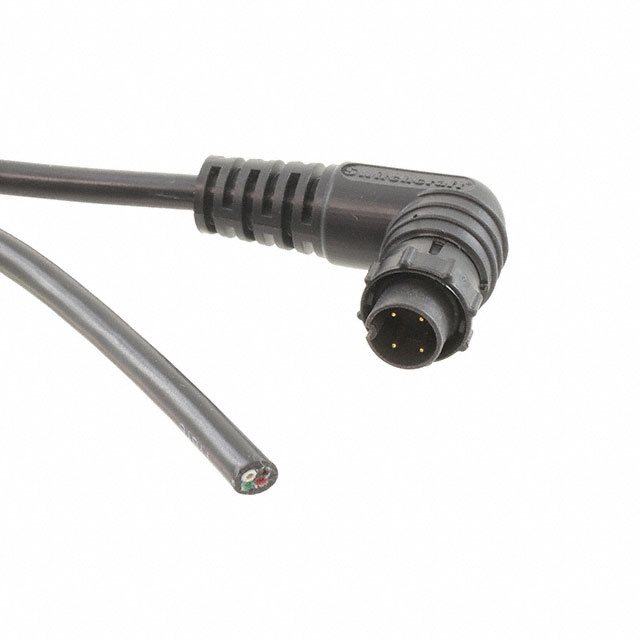

CBL 4POS RCPT RA TO WIRE 6.56'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CARAEN3C4M07990
ActiveSwitchcraft Inc.
CBL 4POS RCPT RA TO WIRE 6.56'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CARAEN3C4M07990 | CARAEN Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins, Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 2 - 8 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation [custom] | Keyed | Keyed |
| 1st Connector Type | Receptacle, Right Angle | Receptacle, Right Angle, Plug, Right Angle |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Black | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Length [x] | 2 m | 2 m |
| Length [x] | 6.56 ft | 6.56 ft |
| Shielding | - | Unshielded |
| Usage | Industrial Environments | Industrial Environments |
CARAEN Series
CIRC CBL 2POS RCPT RIGHT ANGLE
...
| Part | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Type | 1st Connector Number of Positions Loaded | 1st Connector Orientation [custom] | 1st Connector Mounting Type | 2nd Connector Type | Ingress Protection | Cable Material | Usage | Assembly Configuration | Cable Type | Length [x] | Length [x] | Color | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. CARAEN2C2M04090 | Male Pins | 2 | Receptacle, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C6F079DF | Female Sockets | 6 | Plug, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C2F07984 | Female Sockets | 2 | Plug, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C2M07984 | Male Pins | 2 | Receptacle, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C6F394DFR | Female Sockets | 6 | Plug, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C2F079DF | Female Sockets | 2 | Plug, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C3F04090 | Female Sockets | 3 | Plug, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C3F197DFR | Female Sockets | 3 | Plug, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C5M39490 | Male Pins | 5 | Receptacle, Right Angle | All | ||||||||||||
Switchcraft Inc. CARAEN3C3F07984 | Female Sockets | 3 | Plug, Right Angle | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.30 | |
| 10 | $ 24.17 | |||
| 25 | $ 21.90 | |||
| 50 | $ 20.37 | |||
| 100 | $ 18.98 | |||
| 250 | $ 17.35 | |||
| 500 | $ 16.25 | |||
Description
General part information
CARAEN Series
Circular Cable Assembly 6.56' (2.00m)
