395-012-540-688
ActiveEDAC Inc.

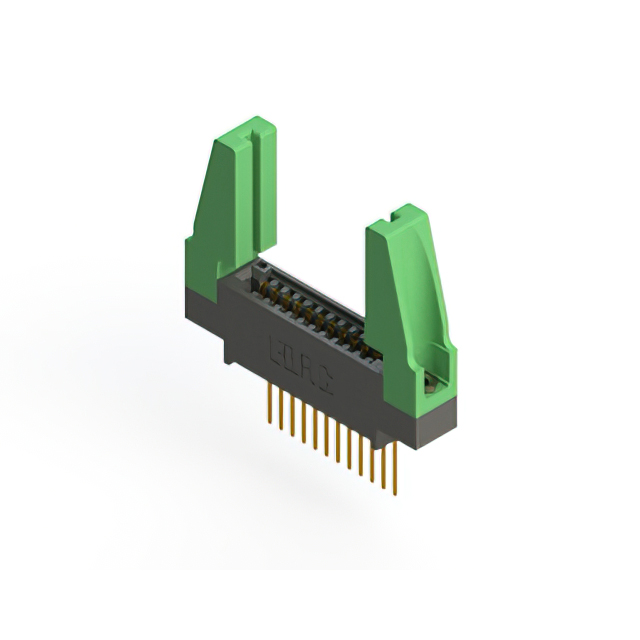

CONN EDGE SINGLE FML 12POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-012-540-688
ActiveEDAC Inc.
CONN EDGE SINGLE FML 12POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-012-540-688 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
395-012 Series
...
| Part | Gender | Number of Positions | Contact Material | Contact Type | Termination | Material - Insulation | Features | Mounting Type | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Type | Number of Rows | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Pitch [x] | Pitch [x] | Read Out | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Guides | Through Hole | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Guides | Through Hole | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Extender | Board Edge Straddle Mount | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | Floating Bobbin Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in |
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Wire Wrap | Polyester Thermoplastic | Card Guides | Through Hole | 12 | -40 °C | 105 ░C | Black | Non Specified - Single Edge | 1 | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Single | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Female | 12 | Copper Alloy | Cantilever | Solder | Polyester Thermoplastic | Through Hole | 6 | -40 °C | 105 ░C | Black | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.54 mm | 0.1 in | Dual | 2 | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.96 | |
Description
General part information
395-012 Series
12 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
