YO0721500000G
ActiveAMPHENOL ANYTEK

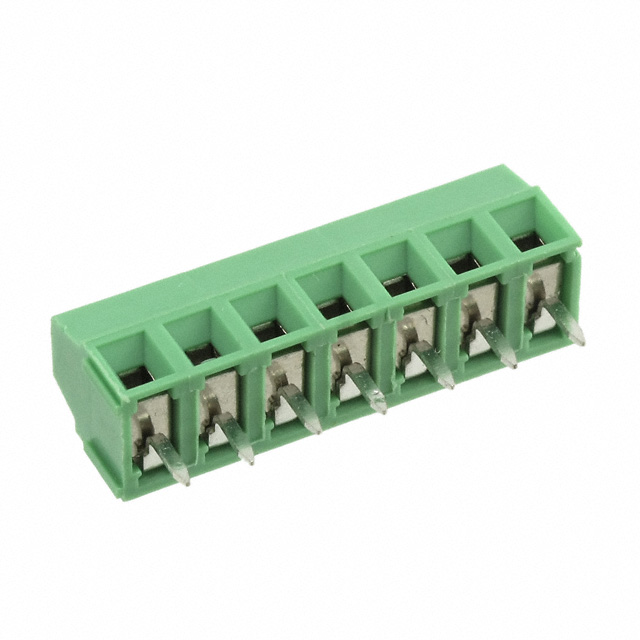

TERM BLK 7P SIDE ENT 3.81MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YO0721500000G
ActiveAMPHENOL ANYTEK
TERM BLK 7P SIDE ENT 3.81MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | YO0721500000G | YO07 Series |
|---|---|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated | Copper Alloy - Nickel Plated |
| Color | Green | Green |
| Contact Material - Plating | Copper Alloy - Tin Plated | Copper Alloy - Tin Plated |
| Current | 10 A | 10 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Housing Material | Thermoplastic | Thermoplastic |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.15 in | 0.138 - 0.15 in |
| Pitch [x] | 3.81 mm | 3.5 - 3.81 mm |
| Positions Per Level | 7 | 7 |
| Screw Material - Plating | Steel, Zinc Plated | Steel, Zinc Plated |
| Screw Thread | M2 | M2 |
| Torque - Screw | 0.2 Nm | 0.2 Nm |
| Torque - Screw | 1.7 Lb-In | 1.7 Lb-In |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
YO07 Series
TERM BLK 7P SIDE ENT 3.81MM PCB
| Part | Color | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Positions Per Level | Pitch [x] | Pitch [x] | Screw Thread | Mating Orientation | Number of Levels | Features | Contact Material - Plating | Torque - Screw | Torque - Screw | Current | Screw Material - Plating | Housing Material | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL ANYTEK YO0721500000G | Green | Screw - Rising Cage Clamp | 16 AWG | 24 AWG | Through Hole | 7 | 0.15 in | 3.81 mm | M2 | Horizontal with Board | 1 | Interlocking (Side) | Copper Alloy - Tin Plated | 0.2 Nm | 1.7 Lb-In | 10 A | Steel, Zinc Plated | Thermoplastic | Copper Alloy - Nickel Plated | -40 °C | 115 °C | 300 V |
AMPHENOL ANYTEK YO0701500000G | Green | Screw - Rising Cage Clamp | 16 AWG | 24 AWG | Through Hole | 7 | 0.138 in | 3.5 mm | M2 | Horizontal with Board | 1 | Interlocking (Side) | Copper Alloy - Tin Plated | 0.2 Nm | 1.7 Lb-In | 10 A | Steel, Zinc Plated | Thermoplastic | Copper Alloy - Nickel Plated | -40 °C | 115 °C | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.00 | |
| 10 | $ 1.17 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.92 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.73 | |||
| 5000 | $ 0.70 | |||
Description
General part information
YO07 Series
7 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
