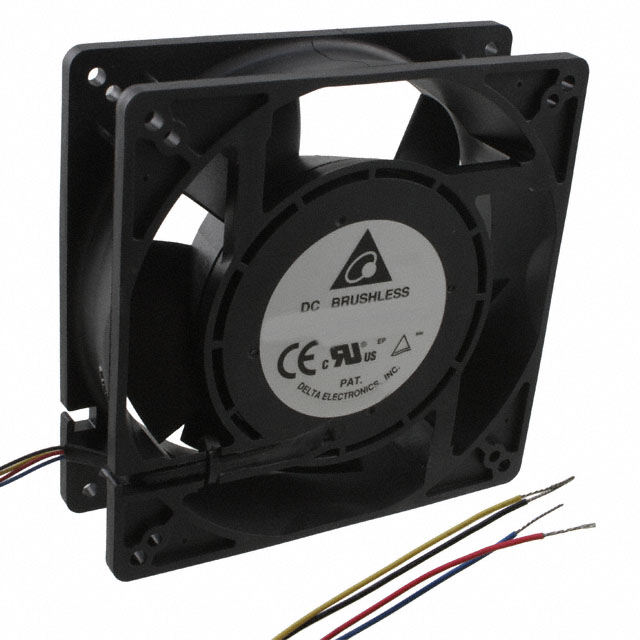

TDA1348AE-EP

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TDA1348AE-EP	TDA1348 Series

Air Flow	160 CFM	160 CFM
Air Flow	4.48 m³/min	4.48 m³/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	400 mA	400 mA
Fan Type	Tubeaxial	Tubeaxial
Features	PWM Control, GR-487 (Salt Fog Protection), Locked Rotor Protection, Speed Sensor (Tach)	PWM Control, GR-487 (Salt Fog Protection), Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection	IP56 - Dust Protected, Water Resistant	IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	60.5 dB(A)
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	19.2 W	19.2 W
RPM	5300 RPM	5300 RPM
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	127 mm	127 mm
Static Pressure	362.7 Pa	326.6 - 362.7 Pa
Static Pressure	1.456 in H2O	1.311 - 1.456 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	57 VDC	57 - 60 VDC
Voltage Range [Min]	36 VDC	36 VDC
Weight	499 g	350.17 - 499 g
Weight	1.1 lbs	0.772 - 1.1 lbs
Width [y]	38 mm	38 mm

FAN AXIAL 127X38MM 48VDC WIRE

Part	Lifetime @ Temp.	Weight	Weight	Width [y]	Bearing Type	RPM	Fan Type	Air Flow	Air Flow	Power (Watts)	Features	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Termination	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Ingress Protection	Voltage - Rated [custom]	Static Pressure	Static Pressure	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise
Delta Electronics TDA1348AE-EP	70000 Hrs	499 g	1.1 lbs	38 mm	Ball	5300 RPM	Tubeaxial	160 CFM	4.48 m³/min	19.2 W	GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Plastic	36 VDC	57 VDC	Plastic	4 Wire Leads	127 mm	127 mm	CE, CSA, UL, VDE	IP56 - Dust Protected, Water Resistant	48 VDC	362.7 Pa	1.456 in H2O	400 mA
Delta Electronics TDA1348AE	70000 Hrs	350.17 g	0.772 lb	38 mm	Ball	5300 RPM	Tubeaxial	160 CFM	4.48 m³/min	19.2 W	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Plastic	36 VDC	60 V	Plastic	4 Wire Leads	127 mm	127 mm	CE, CSA, UL, VDE		48 VDC	326.6 Pa	1.311 in H2O	400 mA	70 °C	70 °C	-10 °C	-10 °C	60.5 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 127mm L x 127mm H Ball 160.0 CFM (4.48m³/min) 4 Wire Leads
