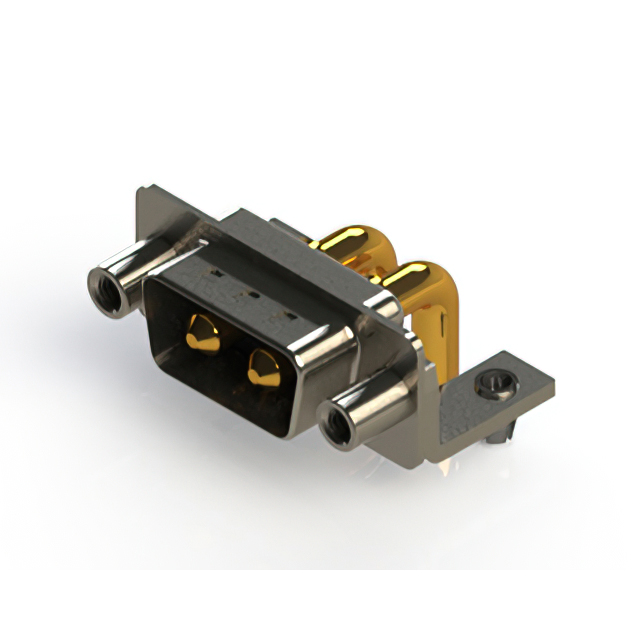

CONN D-SUB PLUG 2POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-2W2-240-4ND
ActiveEDAC Inc.
CONN D-SUB PLUG 2POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-2W2-240-4ND |
|---|---|
| Backset Spacing | 13.2 mm |
| Backset Spacing | 0.52 " |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 40 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | M3 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2WK2, 1 (DE, E), 2V2, 2W2C, 2W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-2W2 Series
...
| Part | Number of Positions | Number of Rows | Contact Material | Mounting Type | Connector Type | Shell Size, Connector Layout | Contact Finish | Current Rating (Amps) | Material Flammability Rating | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shell Material, Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Features | Connector Style | Color | Contact Type | Voltage Rating | Backset Spacing | Backset Spacing | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 30 A | UL94 V-0 | 4-40 | -55 °C | 125 °C | Polyester Thermoplastic | Nickel Plated Steel | Solder | 0.76 Ám | 30 Áin | Board Lock Grounding Indents | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | |
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 30 A | UL94 V-0 | Housing/Shell (4-40) | -55 °C | 125 °C | Polyester Thermoplastic | Nickel Plated Steel | Solder | 0.76 Ám | 30 Áin | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | |
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 20 A | UL94 V-0 | Housing/Shell (4-40) | -55 °C | 125 °C | Polyester Thermoplastic | Solder | 0.76 Ám | 30 Áin | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | |||
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 30 A | UL94 V-0 | Housing/Shell (M3) | -55 °C | 125 °C | Polyester Thermoplastic | Solder | 0.76 Ám | 30 Áin | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | ||
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 30 A | UL94 V-0 | Housing/Shell (4-40) | -55 °C | 125 °C | Polyester Thermoplastic | Solder | 0.76 Ám | 30 Áin | Grounding Indents Mounting Brackets | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | ||
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 40 A | UL94 V-0 | M3 | -55 °C | 125 °C | Polyester Thermoplastic | Nickel Plated Steel | Solder | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | Flash | ||
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | UL94 V-0 | M3 | -55 °C | 125 °C | Polyester Thermoplastic | Solder | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | Black | Coax | 125 VDC | 9.4 mm | 0.37 in | Flash | ||||
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 10 A | UL94 V-0 | Housing/Shell (M3) | -55 °C | 125 °C | Polyester Thermoplastic | Nickel Plated Steel | Solder | Grounding Indents Mounting Brackets | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | Flash | ||
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | 20 A | UL94 V-0 | Board Side (M3) | -55 °C | 125 °C | Polyester Thermoplastic | Solder | Grounding Indents | Combo D-Sub | Black | Power | 125 VDC | 13.2 mm | 0.52 " | Flash | |||
EDAC Inc. | 2 | 1 | Copper Alloy | Through Hole Right Angle | Male Pins Plug | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Gold | UL94 V-0 | 4-40 | -55 °C | 125 °C | Polyester Thermoplastic | Nickel Plated Steel | Solder | 0.76 Ám | 30 Áin | Board Lock Grounding Indents | Combo D-Sub | Black | Coax | 125 VDC | 9.4 mm | 0.37 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 8.33 | |
Description
General part information
629-2W2 Series
2 (Power) Position D-Sub, Combo Plug, Male Pins Connector
