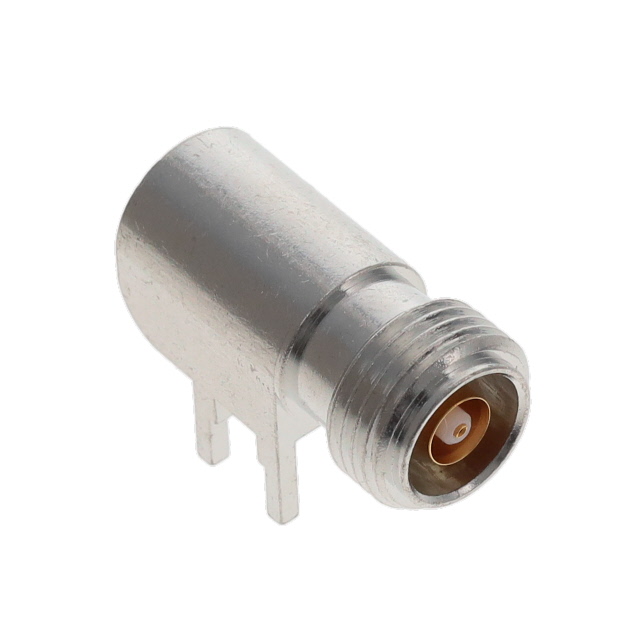

CBJR3157
ActiveCinch Connectivity Solutions Trompeter
CONN TWIN/TRI TTM JACK R/A PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBJR3157
ActiveCinch Connectivity Solutions Trompeter
CONN TWIN/TRI TTM JACK R/A PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CBJR3157 | CBJR Series |
|---|---|---|
| Body Finish | Nickel | Nickel |
| Body Material | Brass | Brass |
| Center Contact Material | Beryllium Copper | Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Connector Style | TTM, Twinaxial/Triaxial | BNC, TTM, Twinaxial/Triaxial, TRS, TRB |
| Connector Type | Female Socket (Concentric), Jack | Female Socket, Jack, Female Socket (Concentric) |
| Contact Termination | Solder | Solder |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Bayonet Lock |
| Features | - | Board Guide, Three Lug |
| Frequency - Max [Max] | 500 MHz | 4 - 500 GHz |
| Housing Color | Silver | Silver |
| Impedance | Non-Constant | Non-Constant |
| Impedance | - | 50 Ohms |
| Mating Cycles | - | 500 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 200 °C | 165 - 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 400 V | 400 - 500 V |
CBJR Series
CONN BNC JACK R/A 50OHM PCB
| Part | Frequency - Max [Max] | Mounting Type | Features | Connector Style | Connector Type | Body Finish | Housing Color | Impedance | Fastening Type | Body Material | Number of Ports | Contact Termination | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Shield Termination | Impedance | Center Contact Material | Mating Cycles | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter CBJR20 | 4 GHz | Through Hole, Right Angle | Board Guide | BNC | Female Socket, Jack | Nickel | Silver | 50 Ohms | Bayonet Lock | Brass | 1 | Solder | Gold | -65 ░C | 165 °C | 500 V | Solder | ||||
Cinch Connectivity Solutions Trompeter CBJR3157 | 500 MHz | Through Hole, Right Angle | TTM, Twinaxial/Triaxial | Female Socket (Concentric), Jack | Nickel | Silver | Brass | 1 | Solder | Gold | -65 ░C | 200 °C | 400 V | Solder | Non-Constant | Beryllium Copper | |||||
Cinch Connectivity Solutions Trompeter CBJR157 | 500 MHz | Through Hole, Right Angle | Three Lug | TRS, Twinaxial/Triaxial | Female Socket, Jack | Nickel | Silver | Bayonet Lock | Brass | 1 | Solder | Gold | -65 ░C | 200 °C | 400 V | Solder | Non-Constant | Beryllium Copper | 500 | ||
Cinch Connectivity Solutions Trompeter CBJR20A | 4 GHz | Through Hole, Right Angle | BNC | Female Socket, Jack | Nickel | Silver | 50 Ohms | Bayonet Lock | Brass | 1 | Solder | Gold | -65 ░C | 165 °C | 500 V | Solder | Polytetrafluoroethylene (PTFE) | ||||
Cinch Connectivity Solutions Trompeter CBJR70 | 500 MHz | Through Hole, Right Angle | Three Lug | TRB, Twinaxial/Triaxial | Female Socket (Concentric), Jack | Nickel | Silver | Bayonet Lock | Brass | 1 | Solder | Gold | -65 ░C | 165 °C | 400 V | Solder | Non-Constant | Beryllium Copper | 500 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 75.92 | |
Description
General part information
CBJR Series
TTM, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Through Hole, Right Angle Solder
