264-130
ActiveWAGO Corporation

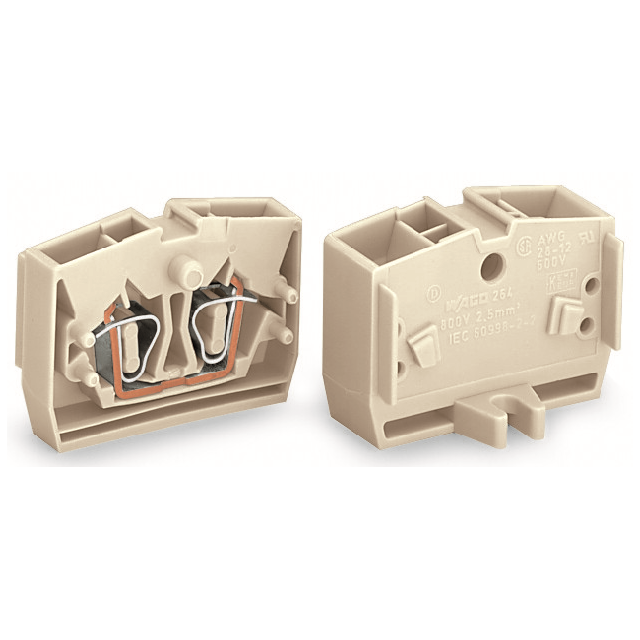

2-CONDUCTOR END TERMINAL BLOCK;
264-130
ActiveWAGO Corporation
2-CONDUCTOR END TERMINAL BLOCK;
Description
General part information
264-130
2 Position Terminal Block Gray Middle 6.0mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 264-130 |
|---|---|
| Height (Max) | 0.87 in |
| Housing Color | Gray |
| Length | 1.26 in |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Direct Mount |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 6 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
