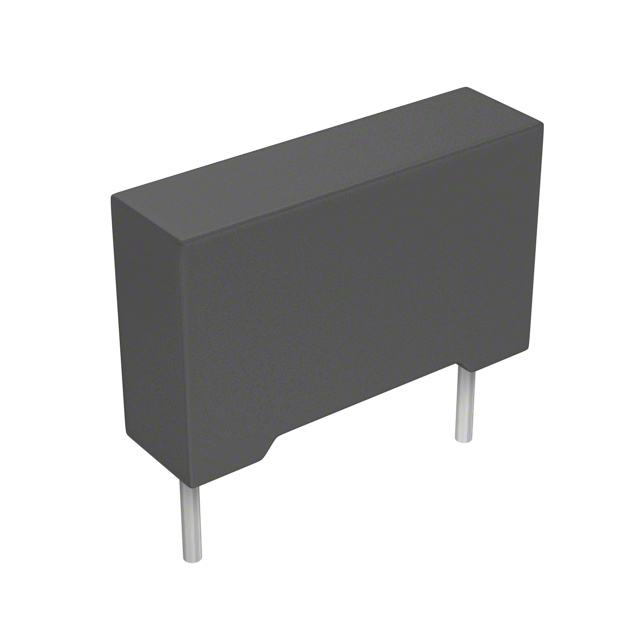

160103J1000F-F
ActiveCornell Dubilier Knowles
CAP FILM 10000PF 5% 1KVDC RADIAL
160103J1000F-F
ActiveCornell Dubilier Knowles
CAP FILM 10000PF 5% 1KVDC RADIAL
Description
General part information
160103J1000F-F
10000 pF Film Capacitor 250V 1000V (1kV) Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 160103J1000F-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 pF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 1 kV |
